SPECIFICATIONS:
Size: 50-400mm
Capacity: 10-2000m3/h
Head: 8-150m
Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Cutterheads: 0.75-22kw
Sealing arrangement: Double mechanical seal
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
product details
Slurry pumps are a heavy and robust version of cen-trifugal pumps, capable of handling tough andabrasive duties. Slurry pumps should also be considered a genericterm, to distinguish them from other centrifugalpumps mainly intended for clear liquids. If the industrial and mining conditions request the slurry pump to fully submerged in the liquid or medium to be processed, then we need selected the submersible slurry sand pump. When the concentration of the slurry to be conveyed is large, a side agitator can be installed on the submersible dredging slurry pump to stir up the sediment.

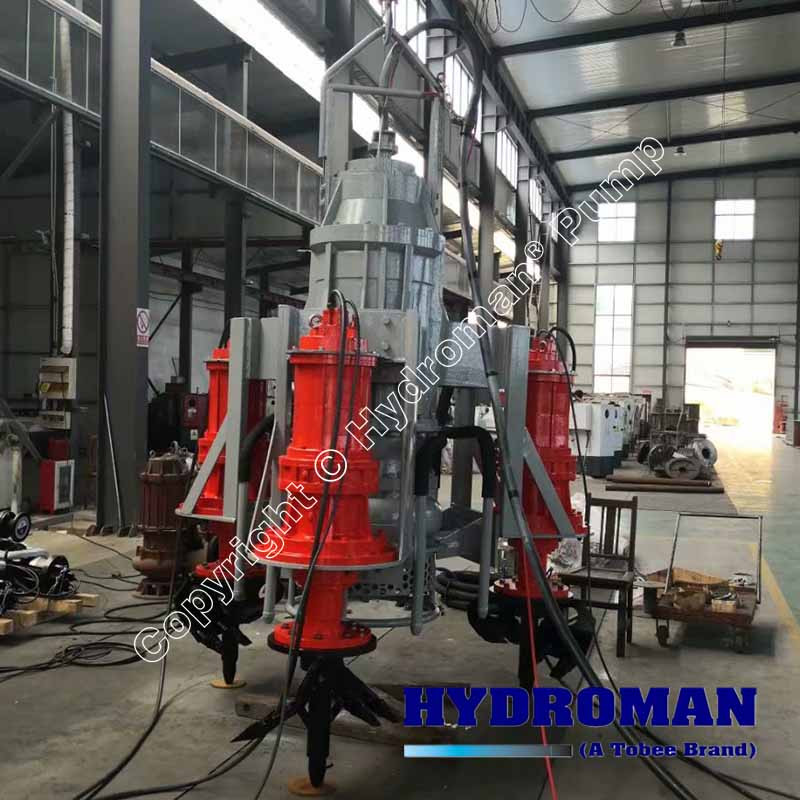

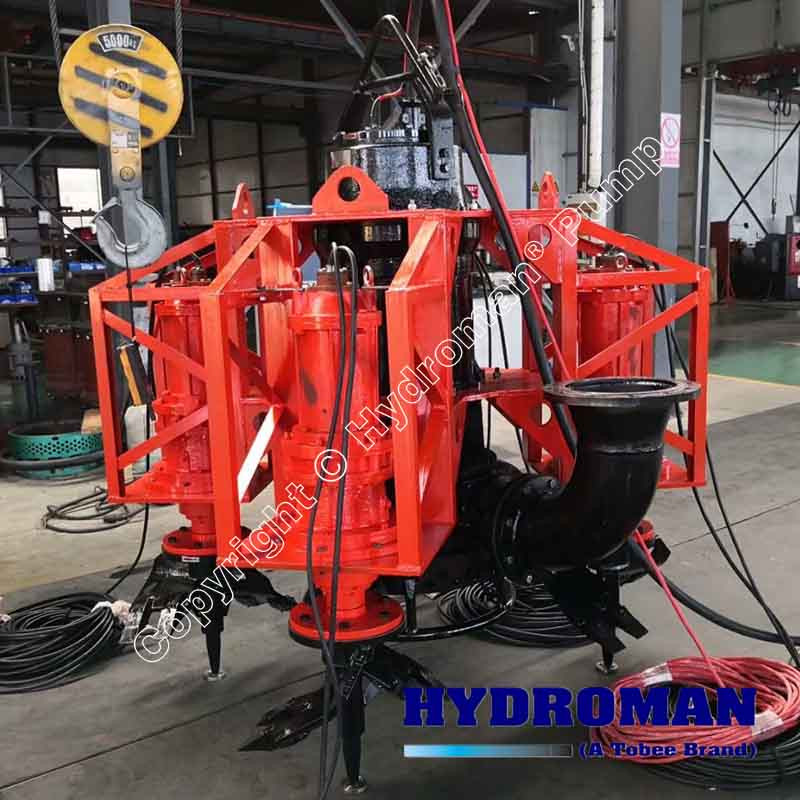

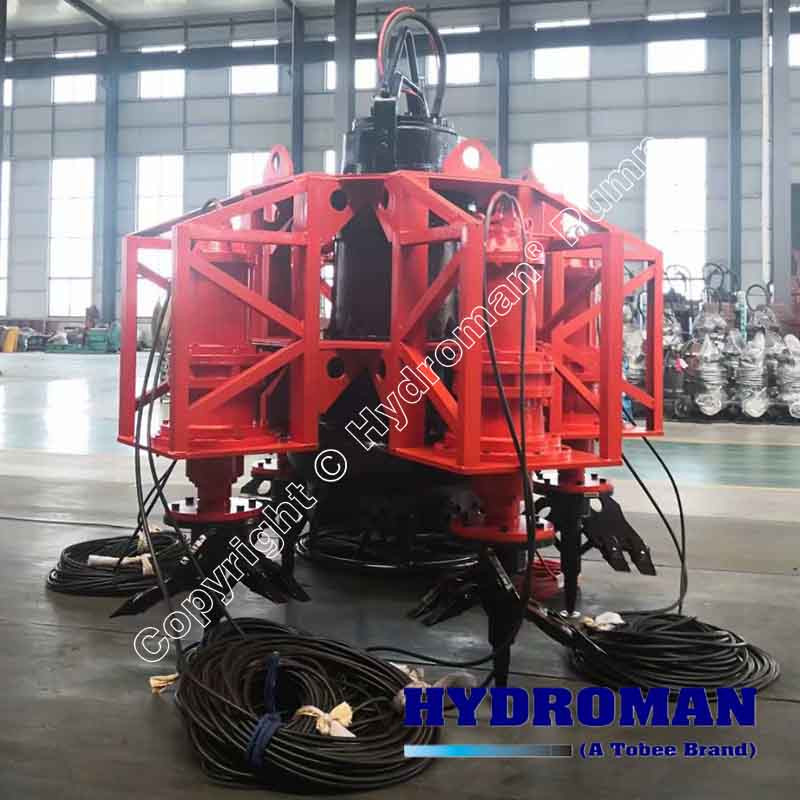

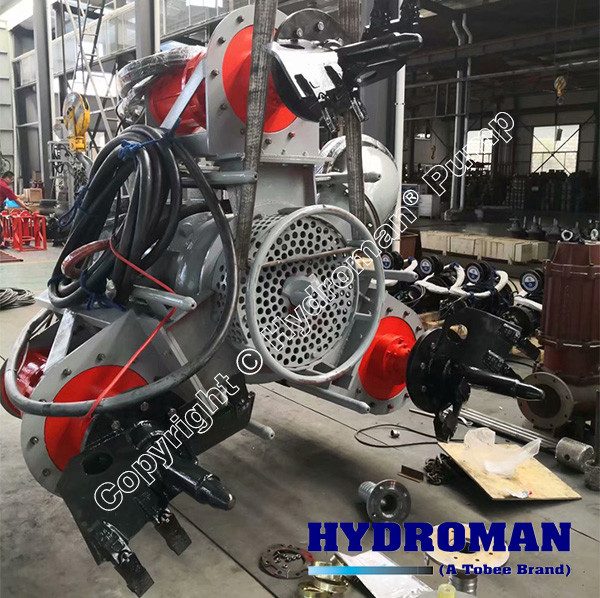

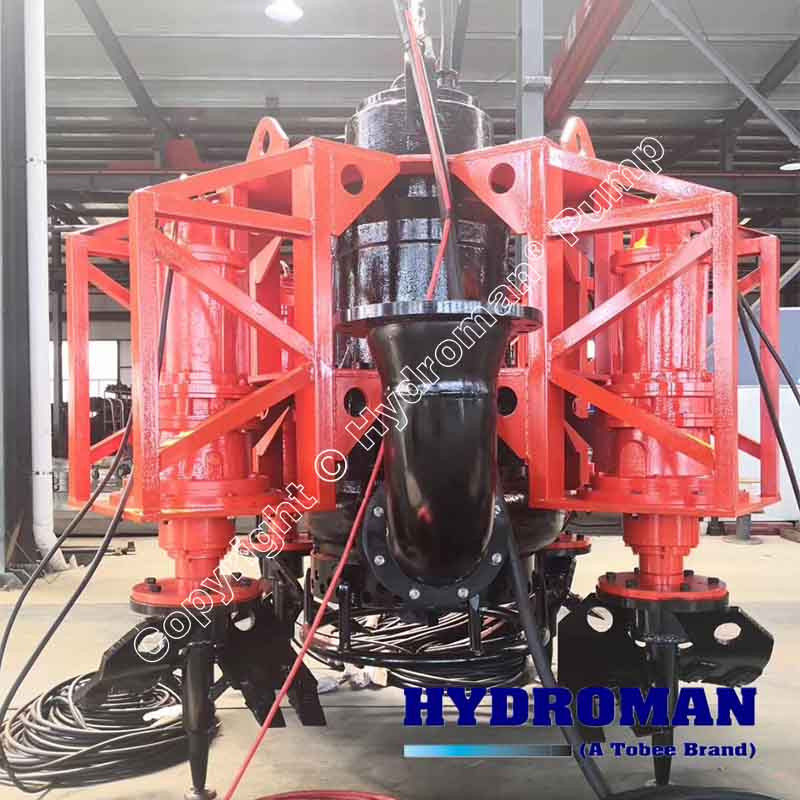

Hydroman offers the toughest Electric Submersible dredge Pump with Cutter Heads in the Industry for handling rocks, gravel, sand, minerals, bentonite and others, with the shortest delivery times, A submersible dredged sand pump with cutter heads could be electrically or hydraulically driven. If it is an electric submersible sand pump, the motor shaft carries the impeller. If it is a hydraulic submersible dredge pump the motor is directly coupled to the main shaft of the submersible dredging sand pump.
Electric Submersible Dredge Sand Pumps offer a number of benefits overdry and especially semi-dry mounted pumps:
Operating directly in the slurry, the submersibleslurry pump requires no support structure. Ittherefore occupies less space.
The motor and volute are one integrated unit,compact and easy to install.
Operation underwater means low noise levels oreven silent operation
The service life of the flow-through components of the pump is relatively long, which saves production costs.
The entire industrial and mining system operates stably, and the operation of the pump will not affect the work of the entire industrial and mining system.
Submersible Dredge Sand Pump Construction Features:
Impeller – Abrasive resistant Closed type impeller with high efficiency.
Shaft– Fully covered heavy duty shaft not exposed to pumpage liquid.
Motor – Highly efficient slow speed motors with built-in protection against temperature rise.
Wearplate – Abrasive resistant Adjustable and replaceable wear plate to restore clearances for optimum efficiency.
Mechanical Seals – Dual mechanical seals Fitted in independent chamber devoid of discharge pressure,ensuring better seal life . Additionaly fitted with seal sensores detect any kind of water ingress.
Agitator – Abrasive resistant agitators comes in as a Built-in arrangement.
Replacable Wear parts – All wear parts are independantly replacable which bring down running /maintenance coast drastically.
