SPECIFICATIONS:
Size: 50-400mm
Capacity: 10-2000m3/h
Head: 8-150m
Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Cutterheads: 0.75-22kw
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
product details

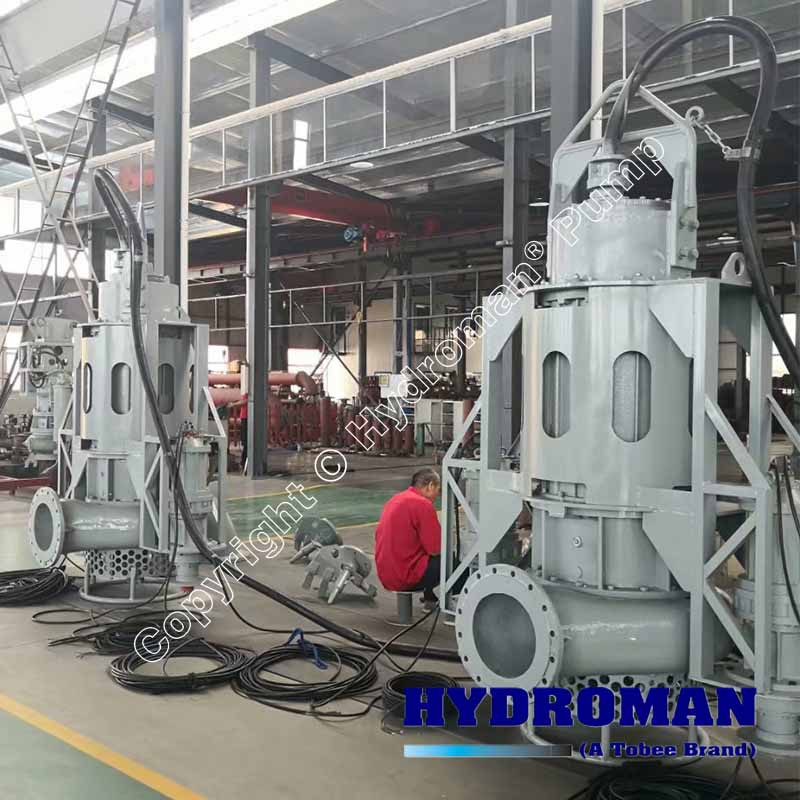

Hydromand® Submersible Slurry, Sand, Dredge Pumps are electro submersible centrifugal pumps main purpose of dredging and mining to get more and more capacity of material with least amount of water. The Electric Submersible Slurry Pump with Cutter Heads driven by electric motor can pipe the slurry to its destination eliminating haul trucks, conveyor belts, and other mechanical earth-moving equipment, all you need is water and power, designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.

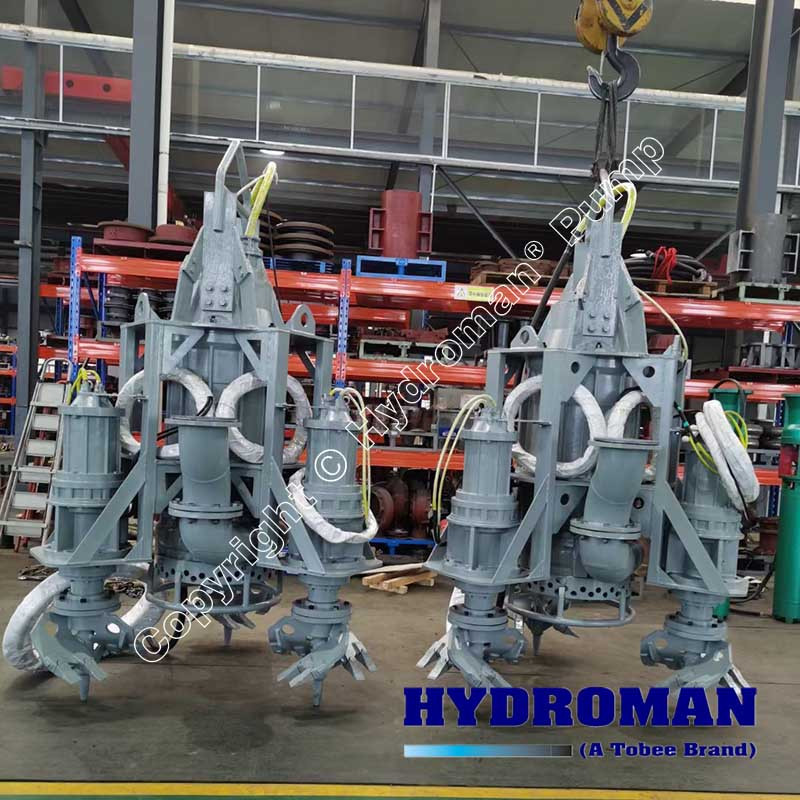

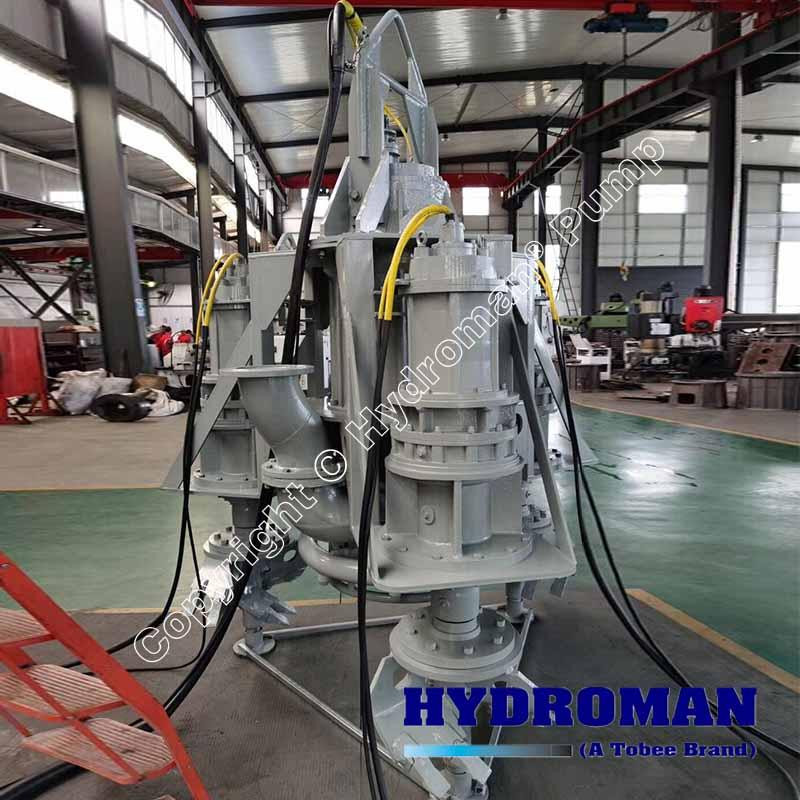

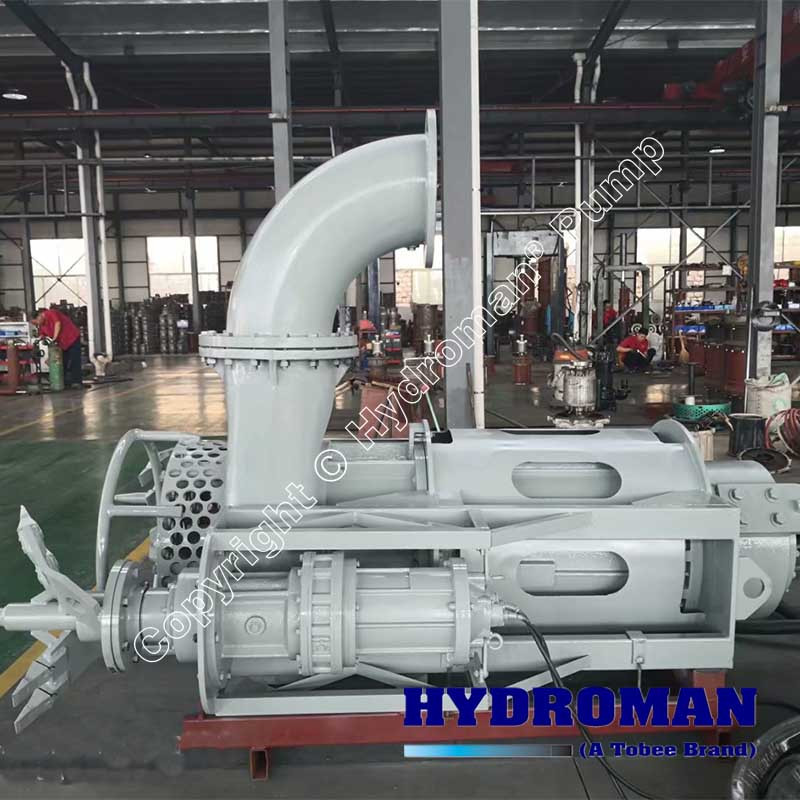

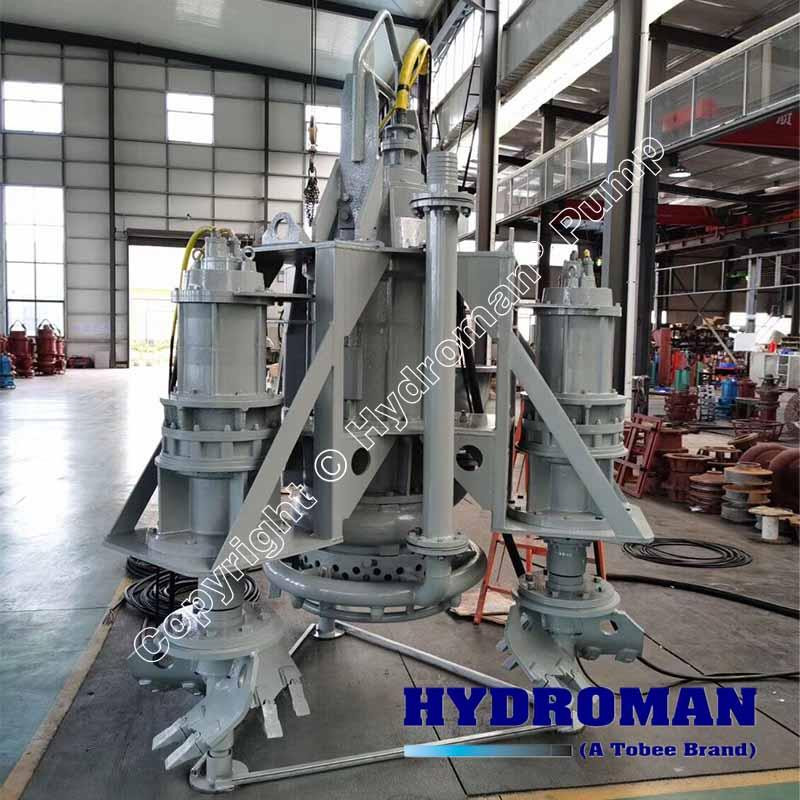

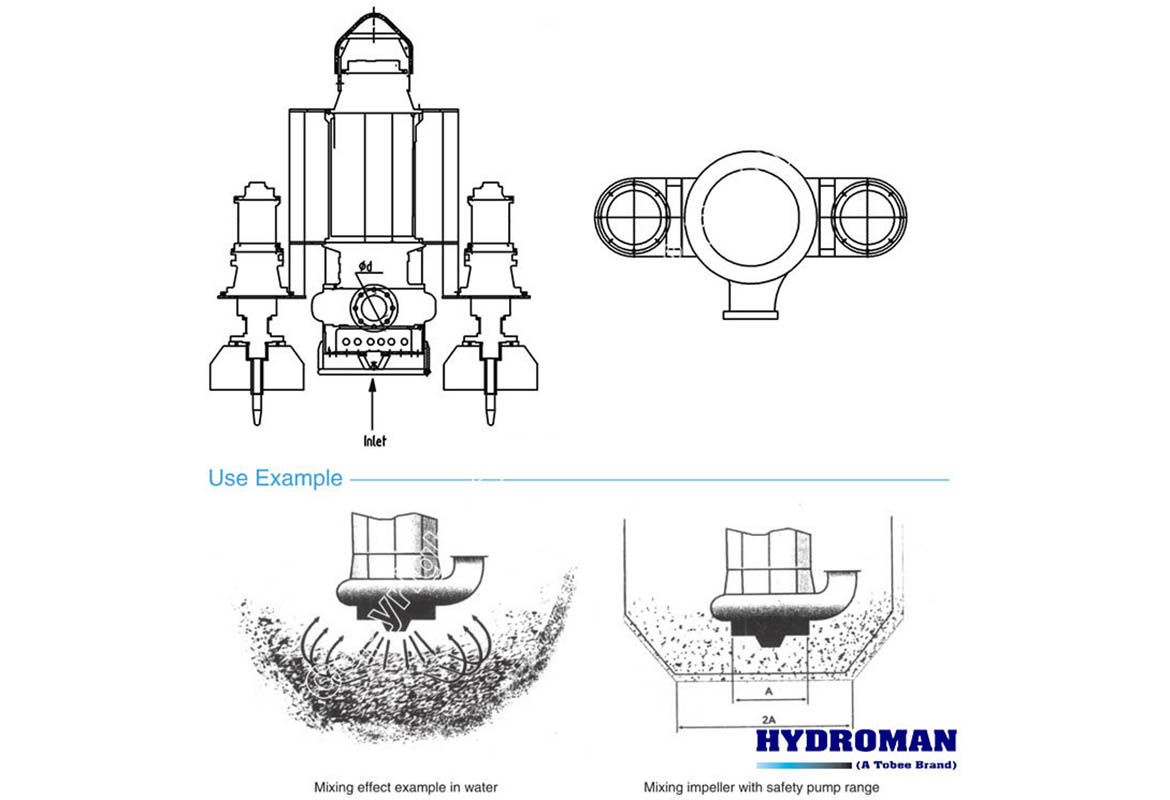

This series of Hydroman™ Electric Submersible Sand Pump incorporate a pump and two agitators, and Sand & Slurry Submersible Pumps with a built in agitator. The agitators on both the Hydromand® dredge submersible pump are designed to mixing heavy and thick sludges to enable them to be pumped and to keep solids in suspension so that they are pumped rather than settling to the bottom.
Hydromand® Submersible Slurry, Sand, Dredge Pumps are a durable,electro-submersible slurry pumps,Versatile and rugged solution for the transfer of abrasive and high density slurries in heavy duty applications, transfer of waste water, slurry, mud, sand, sludge, coal slime, effluent and solids laden water for:
• Building Services
• Sumps and Basements
• Mining
• Civil Construction
• Industry
• Municipal
• Processing
• Water Treatment
• Sedimentation basin
• Seashore / Oceanfront
