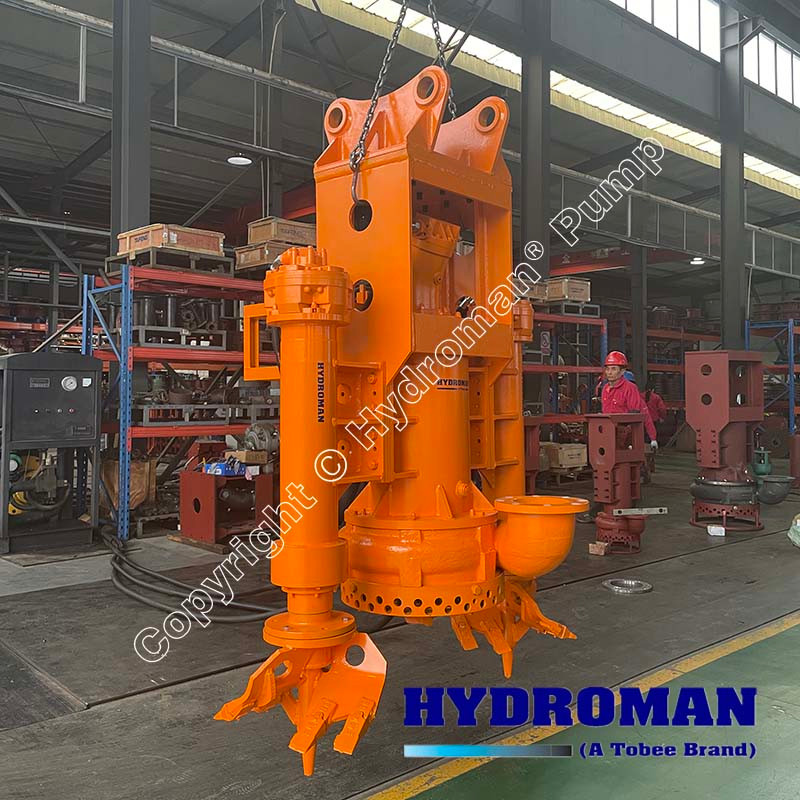

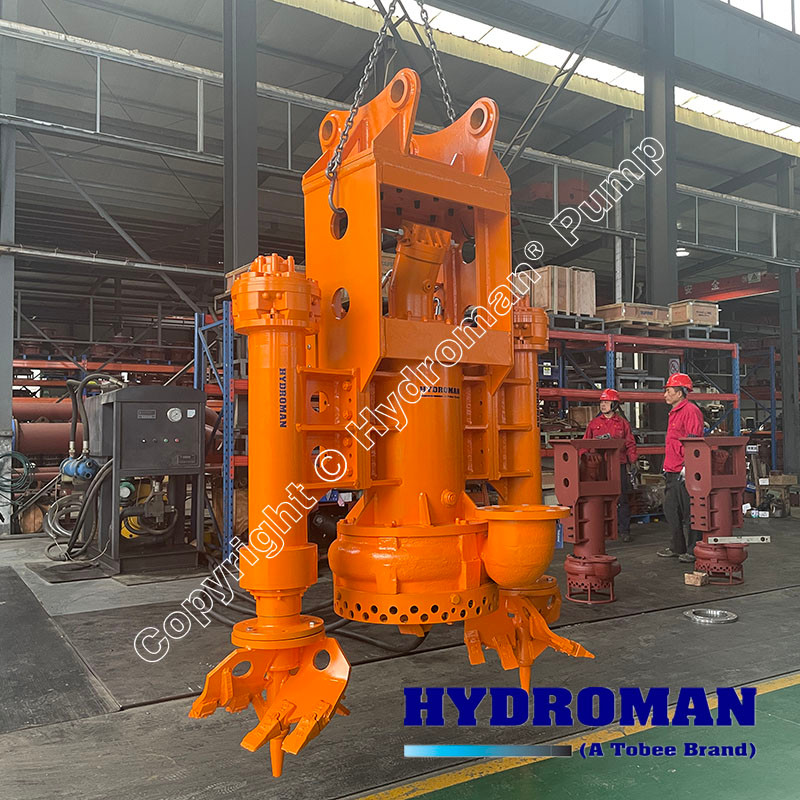

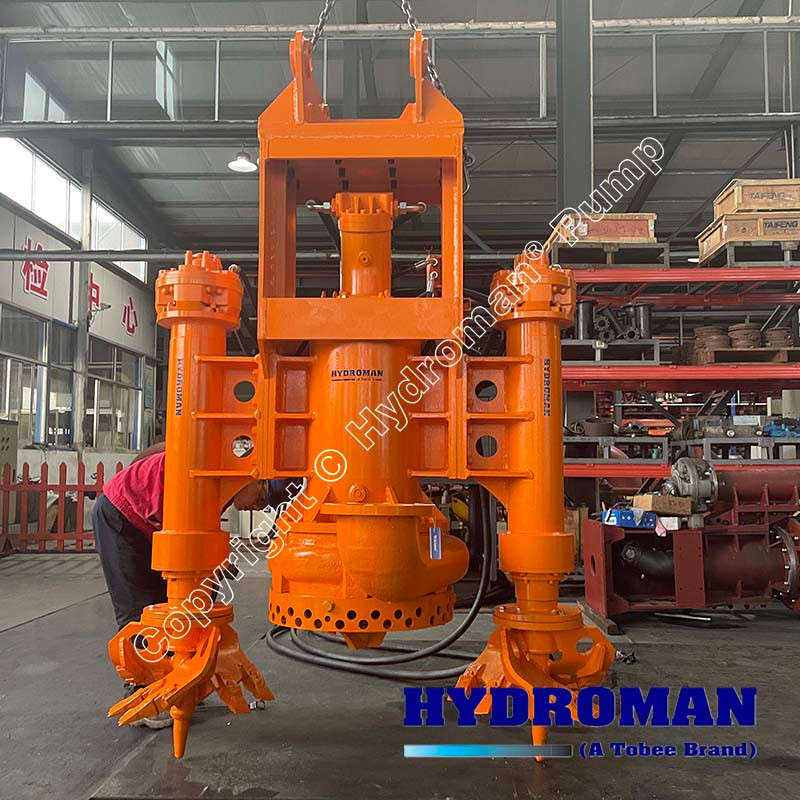

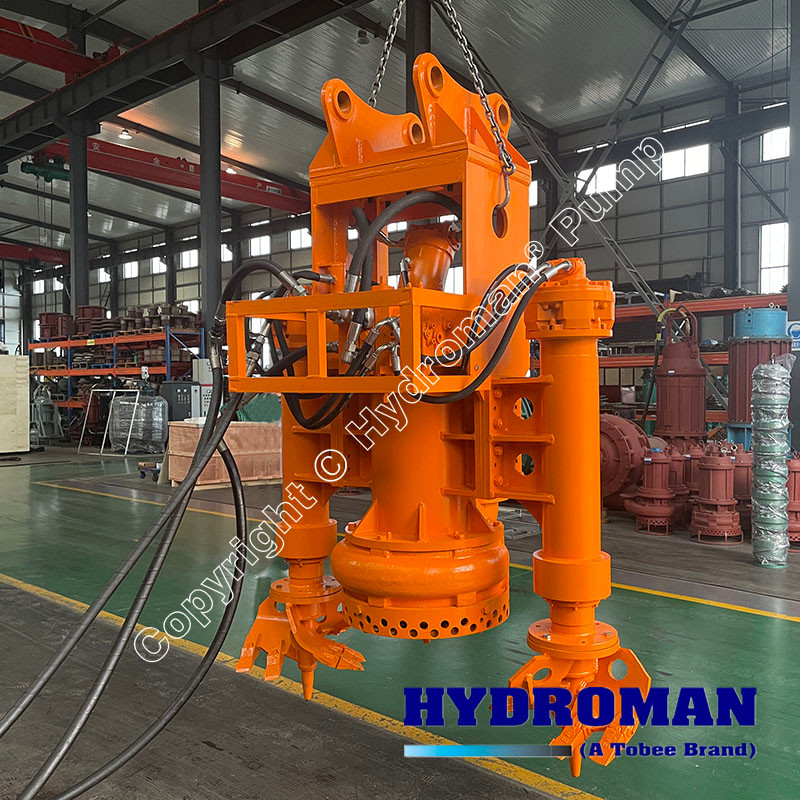

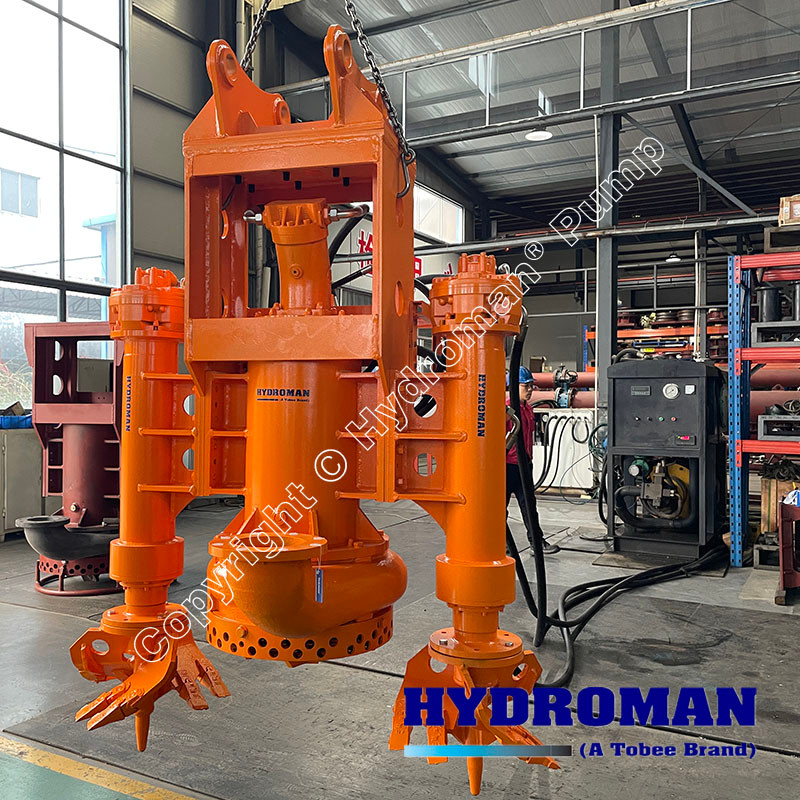

Excavator Dredge Pump Attachment

SPECIFICATIONS:

Size: 80-400mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 120mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman®  excavator dredge pump attachment easily pins into your existing bucket linkage, allows you to use the same excavator for excavation and dredging operations. Hydraulic slurry pump mounted on the excavator are used in applications where moving large amounts of water while digging through the earth is necessary, so excavator fittted hydraulic slurry pump is ideal used for marsh or swamp dredging, hard to reach mine tailings ponds, slurry ponds, liner safe dredging, heavy construction sites and more.

Excavetor hydraulic Sand Pump power supplied by the excacator mechaniry instead of using traditional power sources such as oil-fired diesel engines or electric generators, so the hydraulic power of hydraulic dredging sand pump source allows them to move faster and more freely across difficult terrain. Hydraulic submersible dredge sand pump attach to the boom arm of an excavator, allowing operators more time on-site, and reduce the installation cost than traditional dredges, so the dreger pump hydraulic powered fitted to the boom of a excavatorsystems are becoming more common on the world's dredging projects.

Hydroman®  Excavator Dredge Pump Attachment carries out the following services:

▪ Dam basin dredging

▪ Sump cleanout

▪ Lined dam silt removal

▪ Sand mining

▪ Environmental dam clean-up

▪ Estuary and river desiltation

▪ Harbour and waterway dredging

▪ Dam capacity enlargement

▪ Hydrometric surveys and volume determination

▪ Specialist dredging consulting

▪ Invasive water Hyacinth and water plants removal

▪ Tailings re-mining
