  • Hydraulic Driven Dredge Pump

Hydraulic Driven Dredge Pump

SPECIFICATIONS:

Size: 80-400mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 60mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

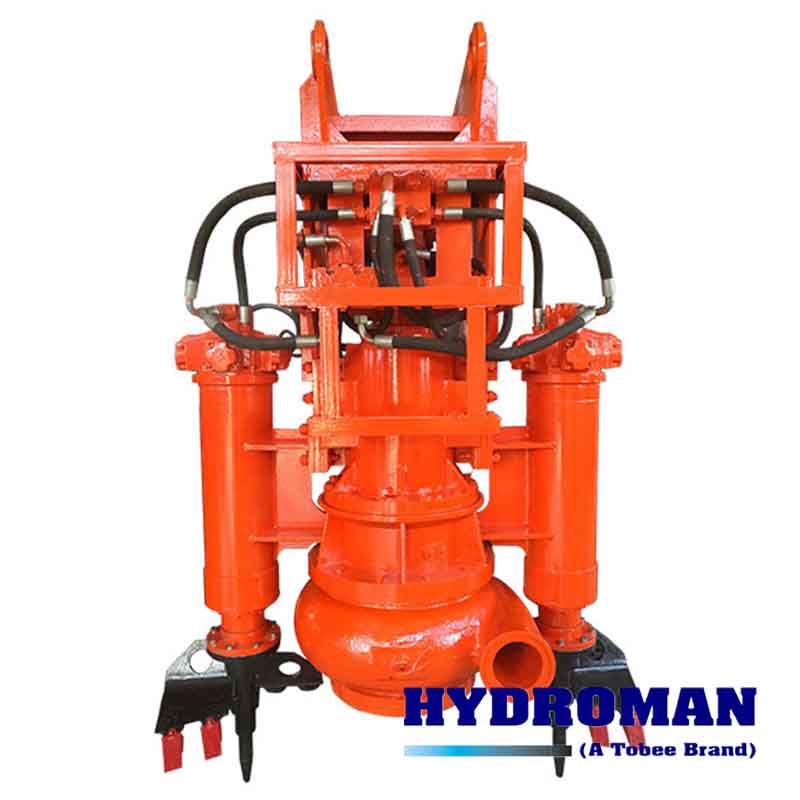

Hydroman™ Hydraulic Driven Dredge Pumps are one kind of submersible dredge pumps driven by hydraulic. It is ideal for applications were electric power is not available, or variable speed is needed for the dredging application.


The hydraulic dredge pump can be also install agitator to work like submersible agitator pumps, and in some place it also called hydraulic submersible pump. No matter where you are, if there is hydraulic supply the pump will work well.


Hydroman Hydraulic dredge pump's wear parts use high chrome 27% material to match good wear resistance performance, the parts hardness can up to HRC65. If you have special material request for your condition, we accept customize material.


Hydroman™ Hydraulic Driven Dredge Pumps Applications:


Dredging of Rivers and Canals

Hydraulic driven dredge pumps has been successfully used in the dredging of rivers to create or recover navigability, to remove contaminants from the riverbed and to restore the river shorelines.

Hydroman can help you to choose the size of hydraulic dredge pump that best adapts to your requirements. Hydroman has a wide selection of hydraulic dredge pumps.

Hydroman can provide hydraulic driven dredge pumps alone, dredge packages that could be in-stalled on existing dredges, and complete dredge solutions like remote controlled dredges, cable dredges or amphibious dredges.

Hydraulic driven dredge pumps have options like dredge monitoring system with integrated GPS, that allows the control of the work performed; and depth counter, to control the depth of the dredging.


Dam Dredging

Dam dredging is a crucial operation to keep the capacity of the water reservoirs created by Dams, either for water supply dams or for hydroelectric dams; since sedimentation build up can affect their capacity and also affect the water quality.

Hydroman can be a reliable and flexible partner for dam dredging projects thanks to quick delivery of hydraulic driven dredge pumps for sediments removal.

Hydroman offers accessories like Anti-turbidity bell, to contain the turbidity of water in sensible applications; and complete solutions like remote controlled dredges or cable dredges. We have solution easy to transport and assembly.


Dredging of Ports and Marinas

Because of sea currents and sedimentation in upstream effluents, the seabed of ports & marinas are frequently raised, making difficult the access of boats and vessels. Our sand pumps are a convenient solution for harbor dredging along with our remote controlled mini-dredges and cable dredges.

Hydraulic driven dredge pump can be combined with cutter heads or side cutters to increase the efficiency when the soil is too compact.

Hydroman offers a selection of electric and hydraulic dredge pumps according to the requirements of each project.


Dredging of Lakes and Ponds

Hydraulic driven dredge pumps are used for cleaning lakes and ponds, to remove silt and contaminants from the lake beds; and for the dredging of tailings ponds in order to restore their capacity.

Hydraulic driven submersible dredge pumps can be equipped with accessories like cutter knife for aquatic plants, and water jets ring or cutters for compacted soil.
