Hydraulic Excavator Slurry Pump

SPECIFICATIONS:

Size: 4 inch - 8 inch

Capacity: 50-150m3/h

Head: 3-15m

Max. particles: 60mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc


Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Hydraulic Excavator Slurry Pump is also hydraulic dredge pump, Which can be mounted excavator as an excavator attachment. Hydraulic Submersible Slurry Pump is mainly installed on the excavator, and the power is provided by the excavator hydraulic station to realize the free transition, and the power source is diesel engine, which can solve the problem of inconvenient power during construction in remote areas.

Hydroman™ can provide many types of Hydraulic Pump, such as hydraulic slurry pump, hydraulic dredging sand pump, submersible hydraulic dredge pump, hydraulic submerisble sludge pump, hydraulic submersible agiator pump, hydraulic dredging pump with head cutters, hydraulic excavator slurry pump, hydraulic submersible sand pump, hydraulic submersible sewage sludge pump, hydraulic sand pump for amphibious excavator.

Hydroman™  Hydraulic Excavator Slurry Pump Application:


River dredging, sand pumping,sand absorption, etc.

Sea bottom sand discharge, coastal reclamation ,fish pond mud cleaning, etc.

Concentrator tailings transportation, coal mine slag removal, power plant fly ash transportation, etc.

The sedimentation tank transports mud sand, sand sinking pool, clear water tank, ore slurry removal.

Phosphorus chemical high-temperature slurry conveying, boiler high-temperature high-temperature slurry, heat-resistant iron oxide skin water cleaning.

Medium transportation such as gold ore, extraction of iron ore, extraction of quartz sand and tailings.

Municipal pipelines, water conservancy projects

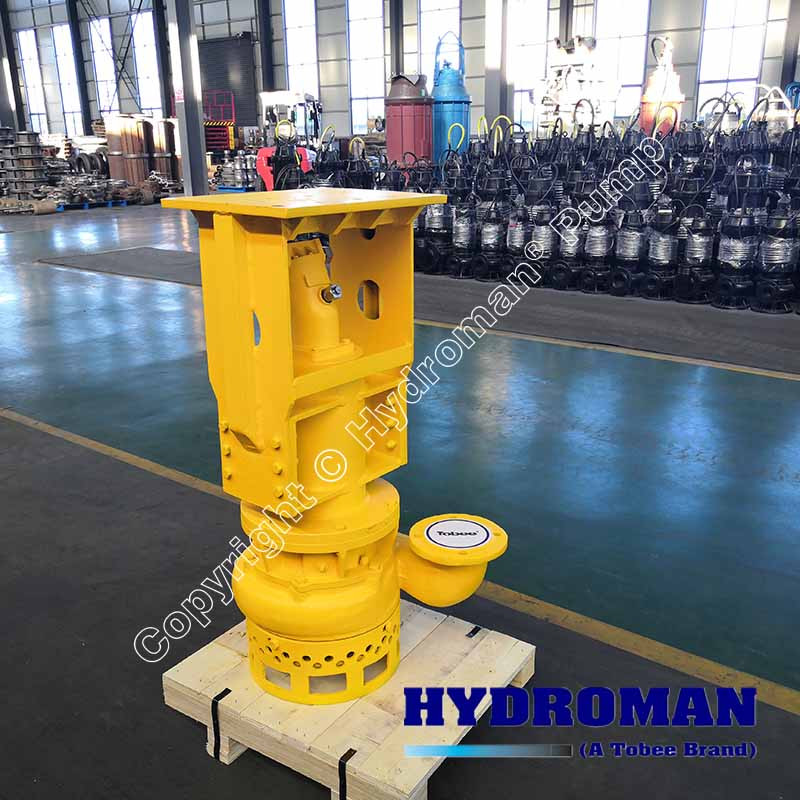

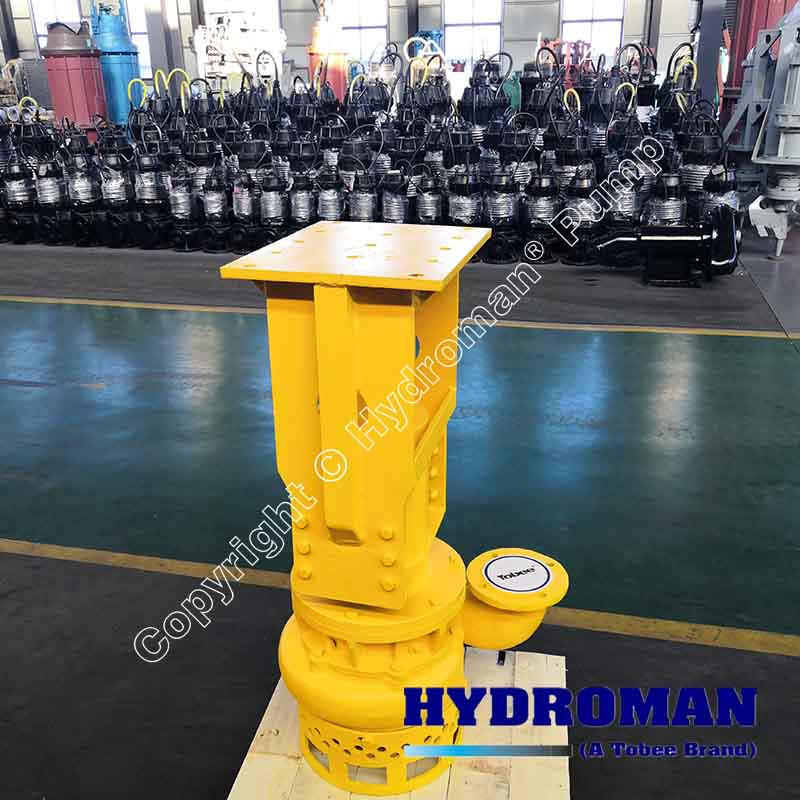

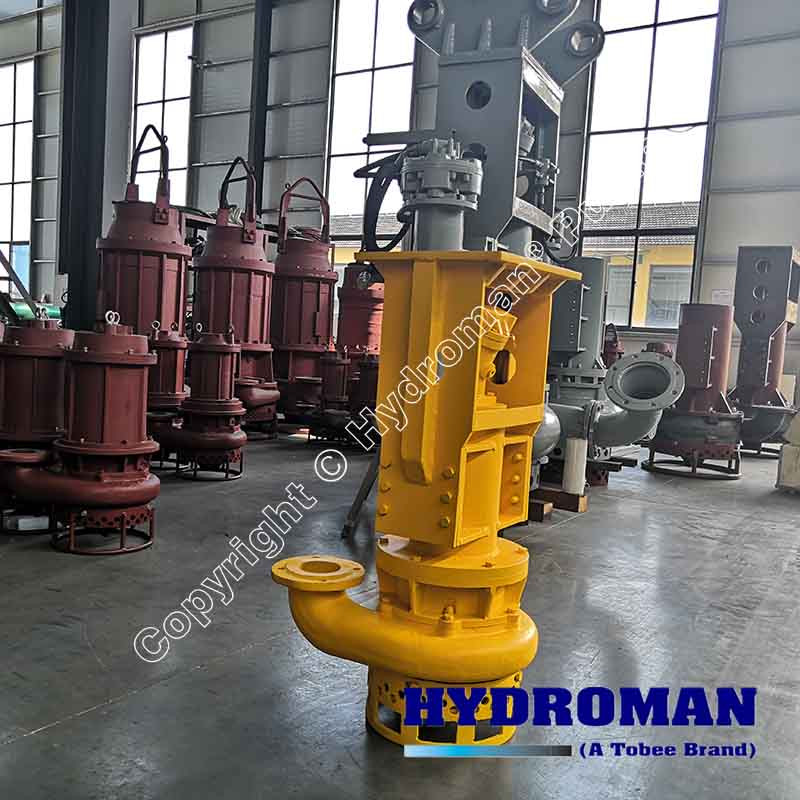

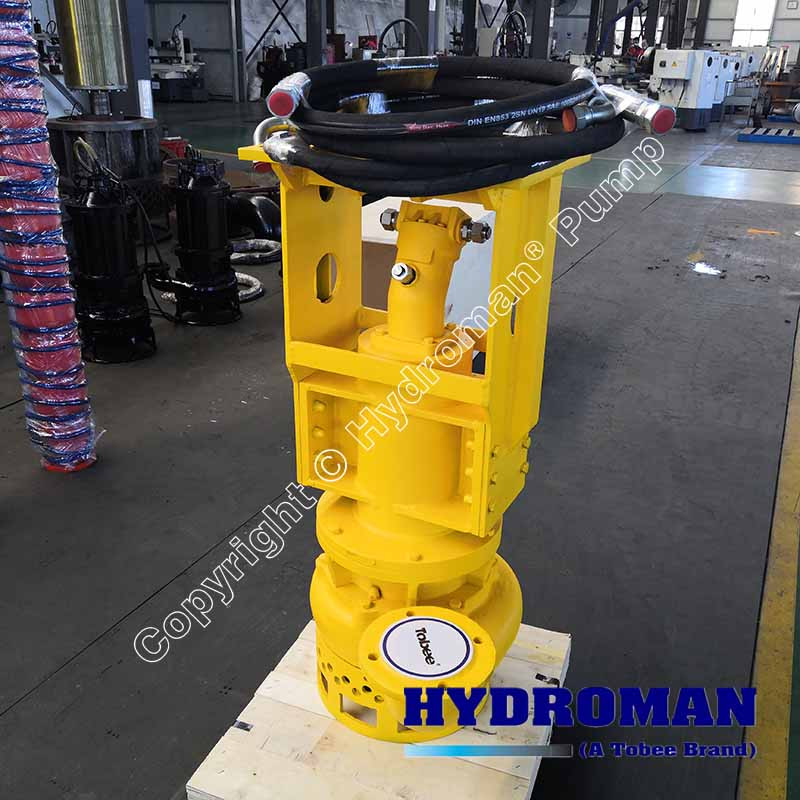

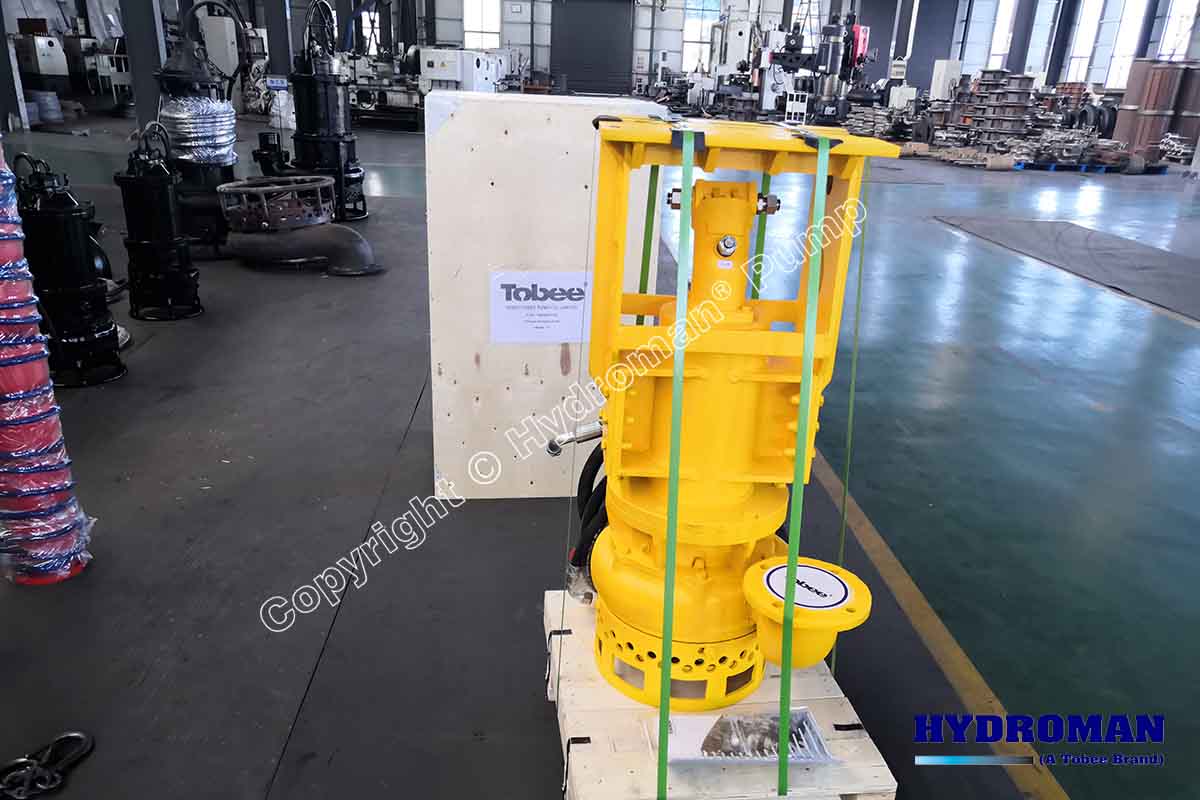

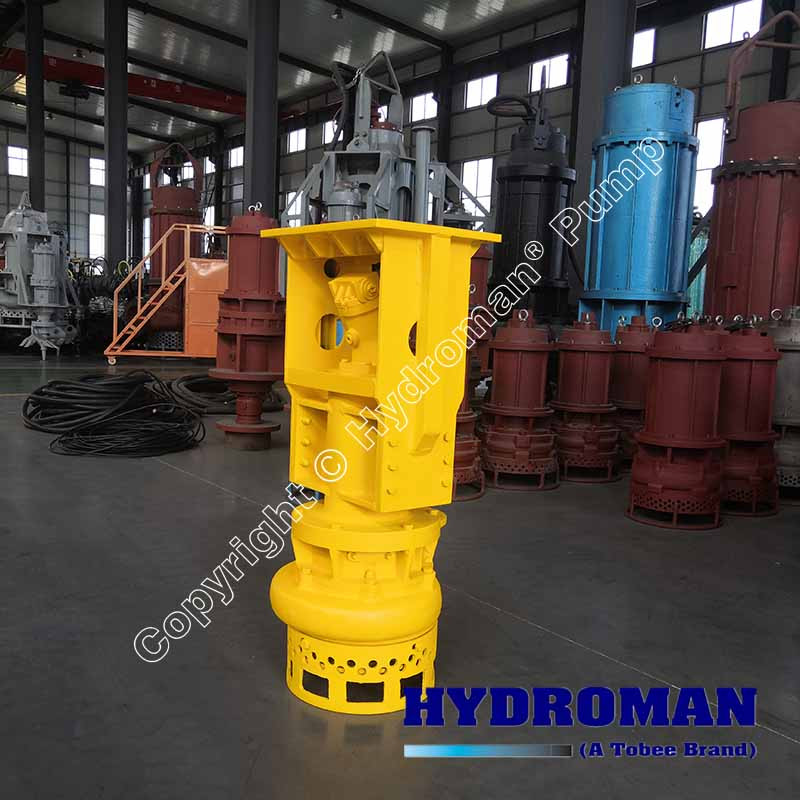

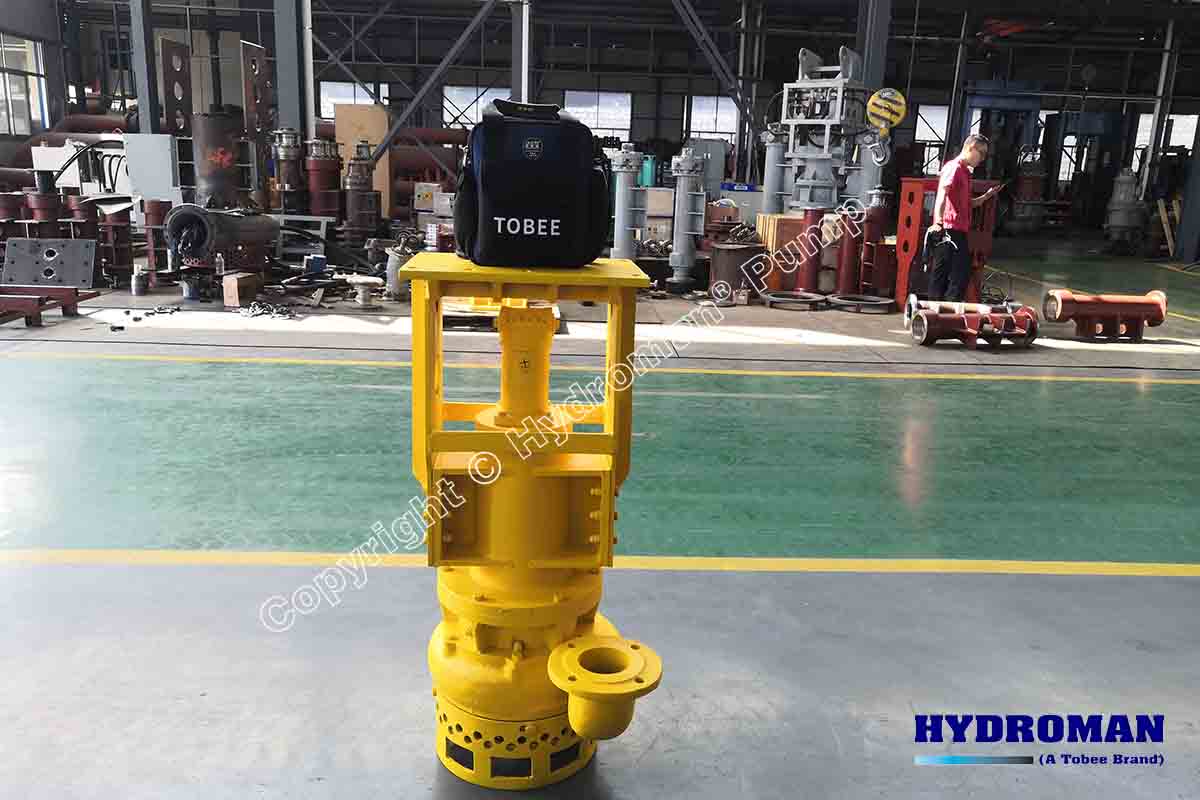

Hydroman™  Hydraulic Excavator Slurry Pump Photos:


Hydraulic submerisble sludge pump

Submersible Hydraulic Excavator Dredging Pump

Submersible Dredge Pump

 Hydraulic Excavator Mounted Dredge Pump

Hydraulic Submersible Sediment Pump
