Hydraulic Offloading Submersible Sand Pump

SPECIFICATIONS:

Size: 80-450mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 120mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Hydraulic Offloading Submersible Sand Pump is a multifunctional hydraulic driven dredging pump,mainly used as an excavator attachment taking place of grab bucket when there is too much water, mud and not suitable for digging. Submersible Offloading Sand Pump is the most robust equipment for moving sand, slurry, gravel materials dredging. Hydraulic Submersible Sand Pump is driven by the excavator hydraulic system or a separate hydraulic power pack.

Dredging service is always used to maintain harbors, canals, rivers, lakes, and other bodies of water to ensure boats and large ships are able to safely pass without getting stuck in sediment build-up which occurs as sand and silt wash downstream, eventually clogging up channels and harbor. Our submersible offloading dredge pump advanced design, which includes agitators, hydraulic cutters and pressure compensation of all equipment, allows for high-efficiency dredging, even in deep sea conditions, so Hydroman submersible sand dredging pump plays a important role in the dredging service.

Hydroman Hydraulic Offloading Submersible Sand Pump Benefits:

▪ High performance in heavy duty conditions - Hydroman submersible pumps ensure transportation up to 35% of dry mass (sand, gravel etc.) from total pump capacity.

▪ Oversized motors are designed for sludge and slurries with solid concentration up to 70% by weight and 1.6 Kg/dm3. The hydraulic drive version is also available to provide higher performance in especially harsh working conditions.

▪ Advanced mixing and excavating movement is created by HI-CR steel agitator cutter blades. The agitator lifts and sucks settled sediments of solids, creating a continous flow of concentrated slurry into the pump.

▪ Additional hydraulic excavators can be connected directly to the pump for extra digging support in hard-packed sand and clay.

▪ Low operating costs. Lower speed (rotations) ensures lower wear and long life of components. For example, model THY220A/B pump works at amazingly low operating speed of only 600 rev/min.

▪ Abrasion resistance, long service life and reliability guaranteed by the rugged and heavy construction. Extra strong wear parts produced in Hyperchrome are resistant to highly abrasive particles and provide longer life between spare parts replacements.


Hydroman Hydraulic Offloading Submersible Sand Pump Application in Different Field:


Civil Emergencies
Construction IndustryHarbors and Maritime Works
Transfer Sand and Gravel

Clean out underground rooms

and tunnes

First intervention in

environmental disasters

(flooding)

Dredging sludge and

mud deposits

Environmental dredging

Contaminated sediments dredging

Polluted sediments dredging

Trench clean and back-fill

in pipe/cable laying project

Pumping bentonite slurry

during foundation

Clean out caissons in construction

Overburder remuval

Silt from gravel washing

Pumping sand and gravel

Environmental dredging
Off-Shore dredging
Removal of silt/sand in marinas

Cleaning and maintenance

of harbors

Reclaiming beaches
River, channel, lake dredging

Dam maintenance

Contaminated sediments removal

Harbor dredging

Off-shore and high depth dredging



Deep sea dredging operation

(up to 150 m deep)

High depth dredging
Sand extraction
Ocean sand mining

Pumping sand and gravel

(up to 120mm)

Environmental dredging
Contaminated sediments dredging

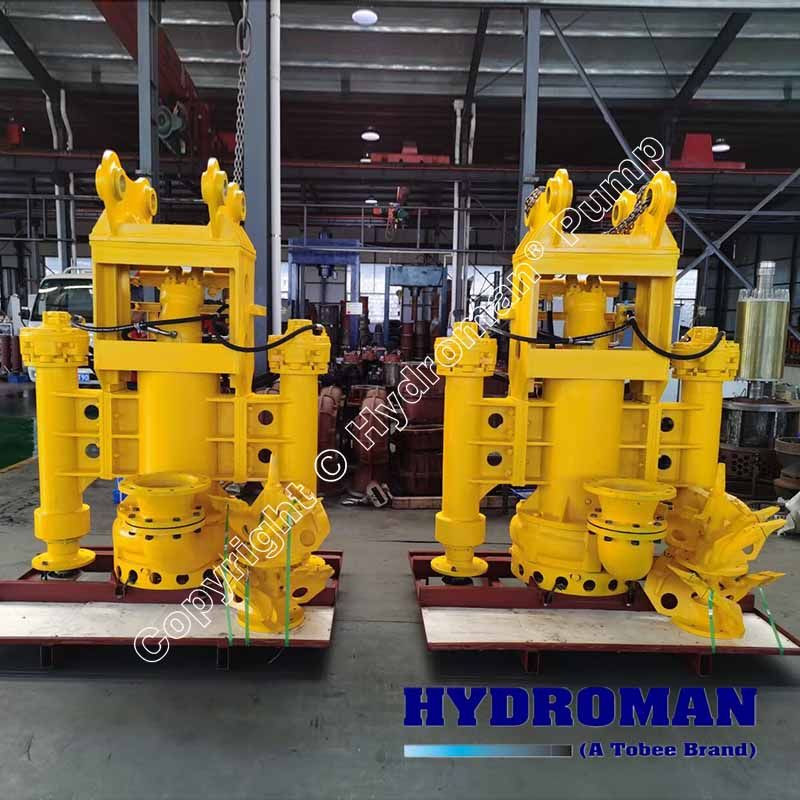

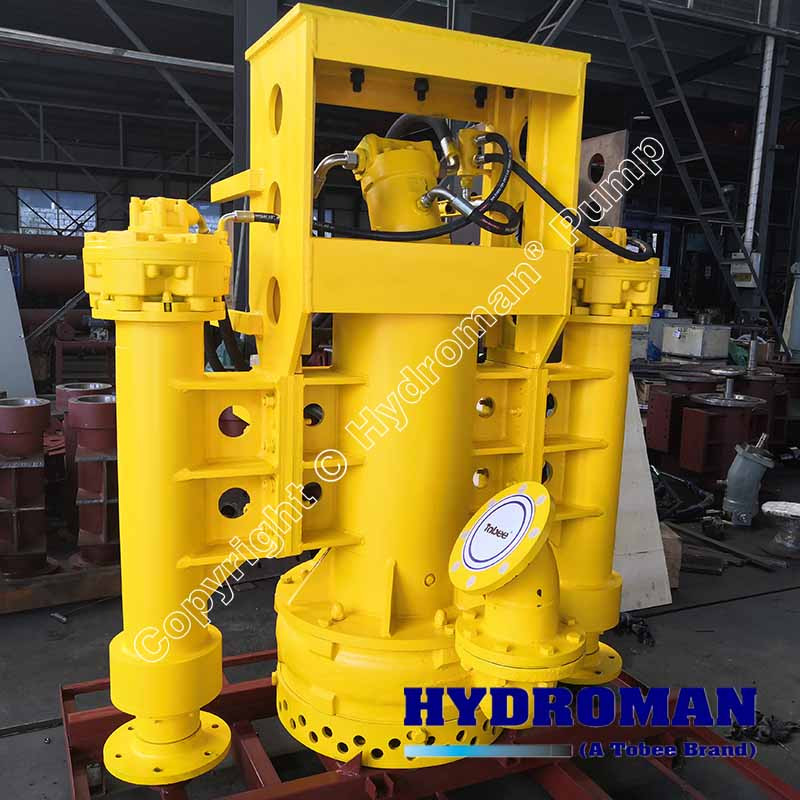

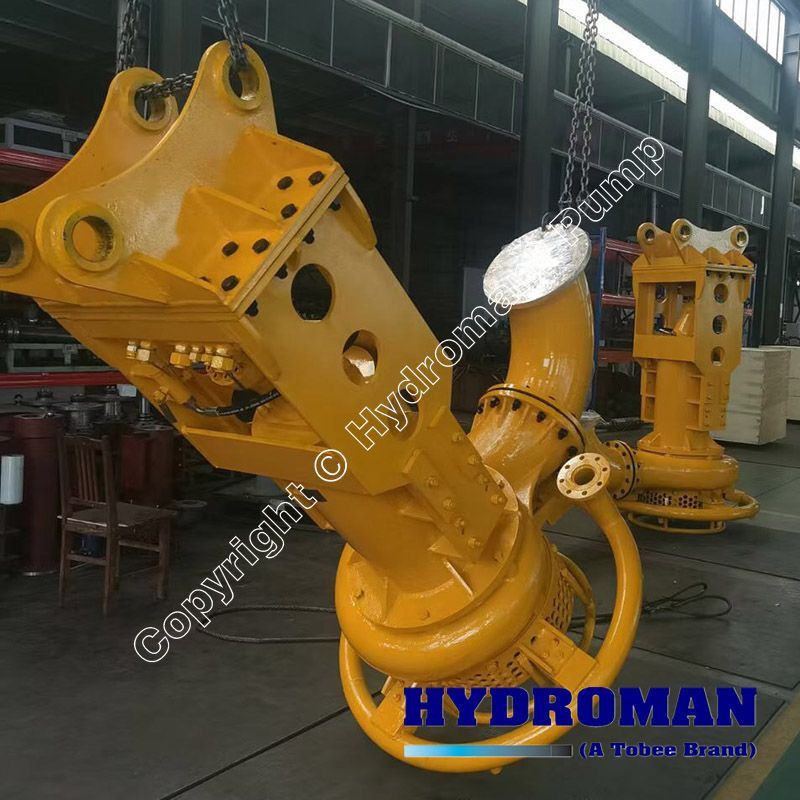

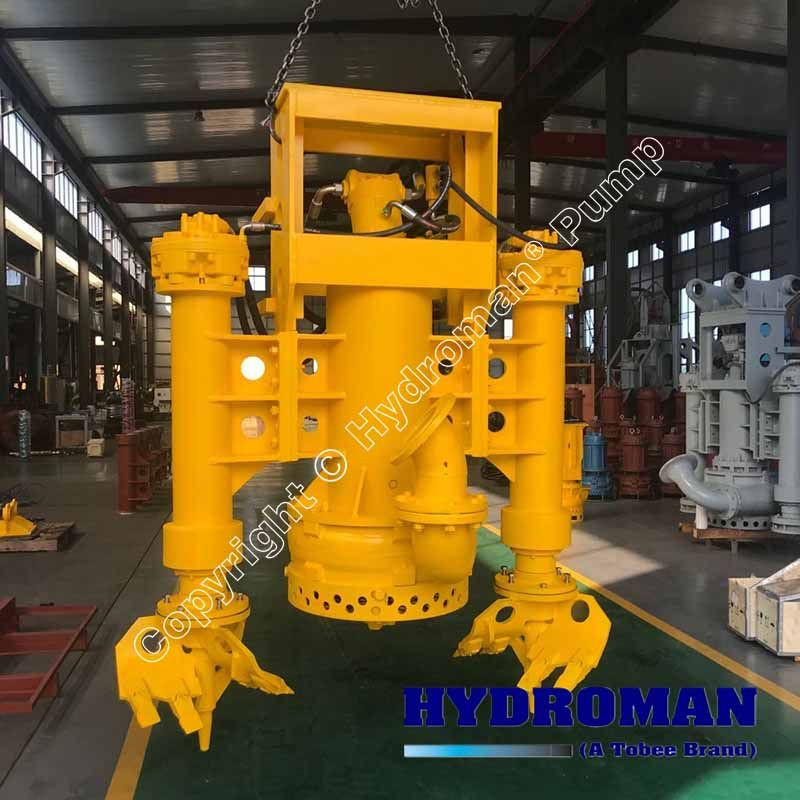

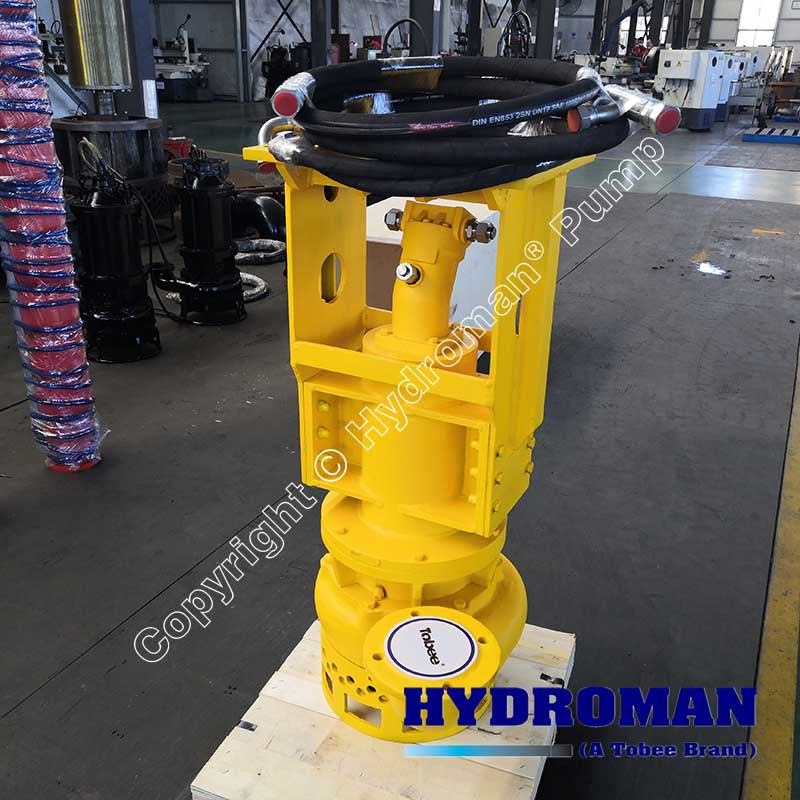

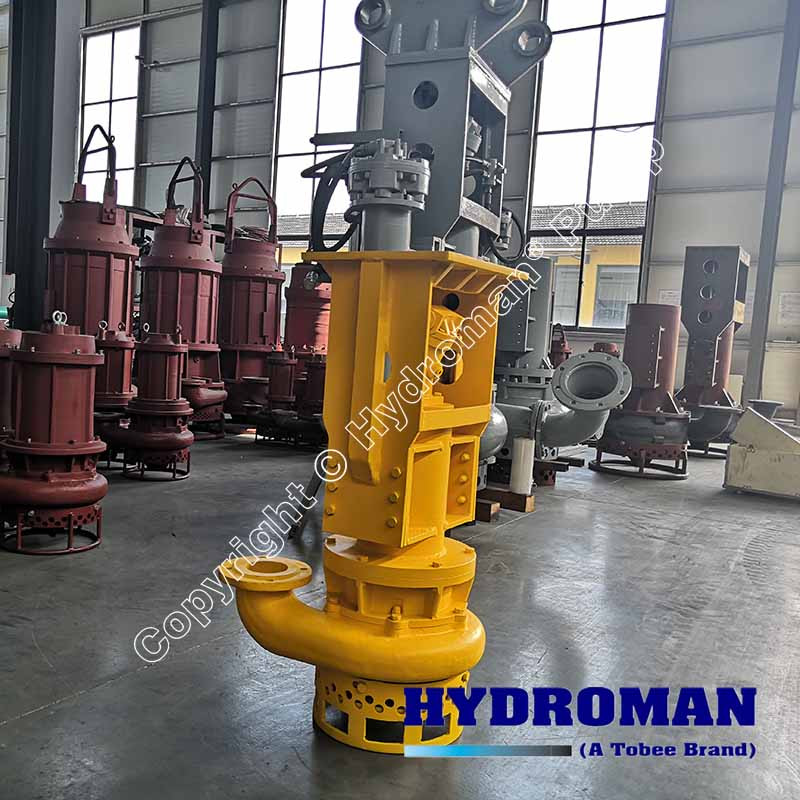

Hydroman™  Hydraulic Offloading Submersible Sand Pump Showing:
