THY Hydraulic Slurry Pumps

SPECIFICATIONS:

Size: 100-350mm

Capacity: 60-1200m3/h

Head: 5-43m

Max. particles: 120mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Sales@tobeepump.com +86 180 3203 4573

Inquire Now None

product details

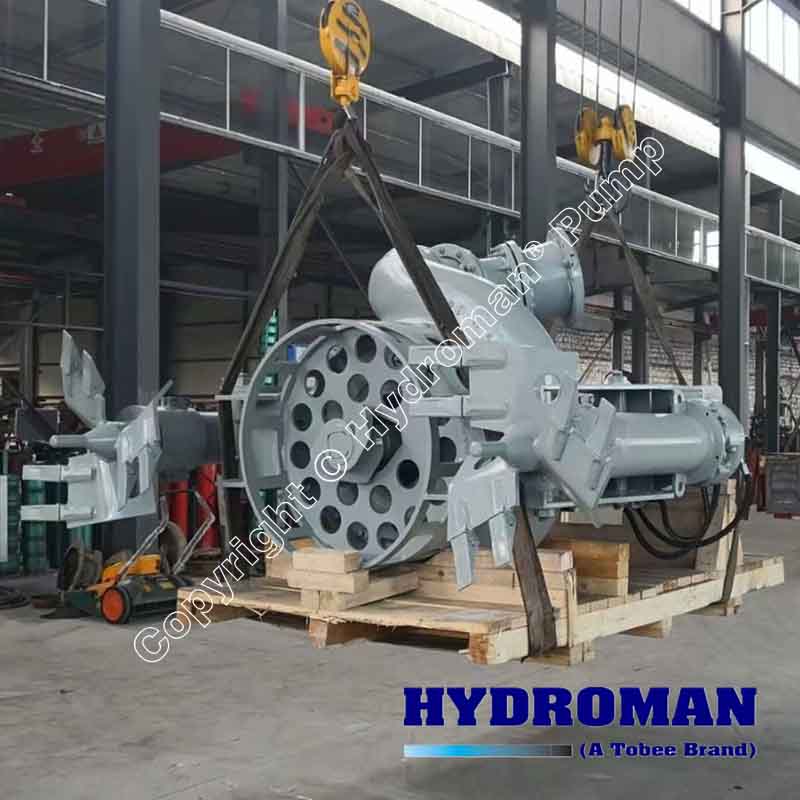

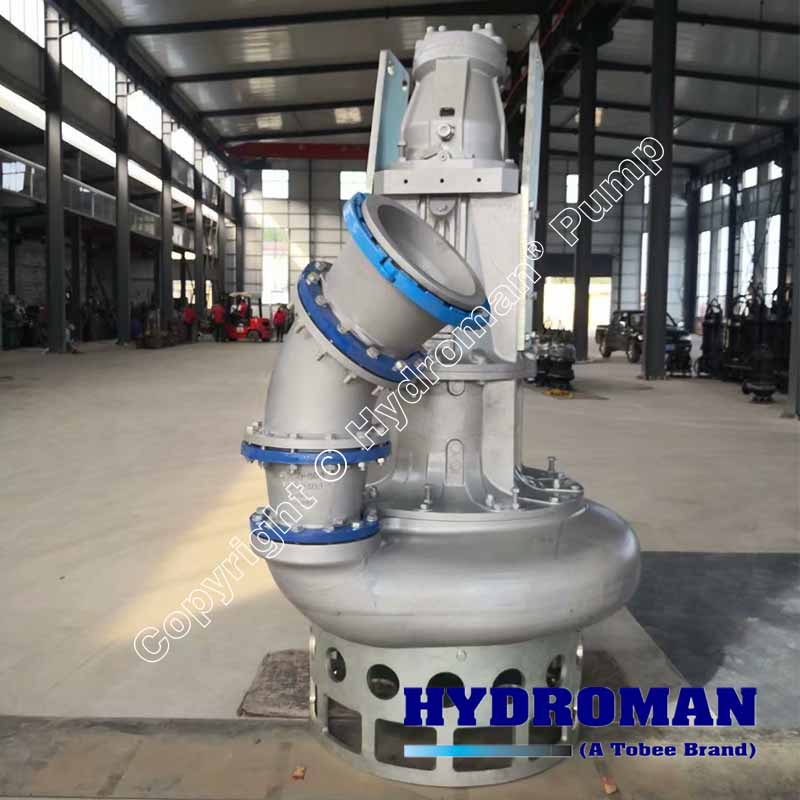

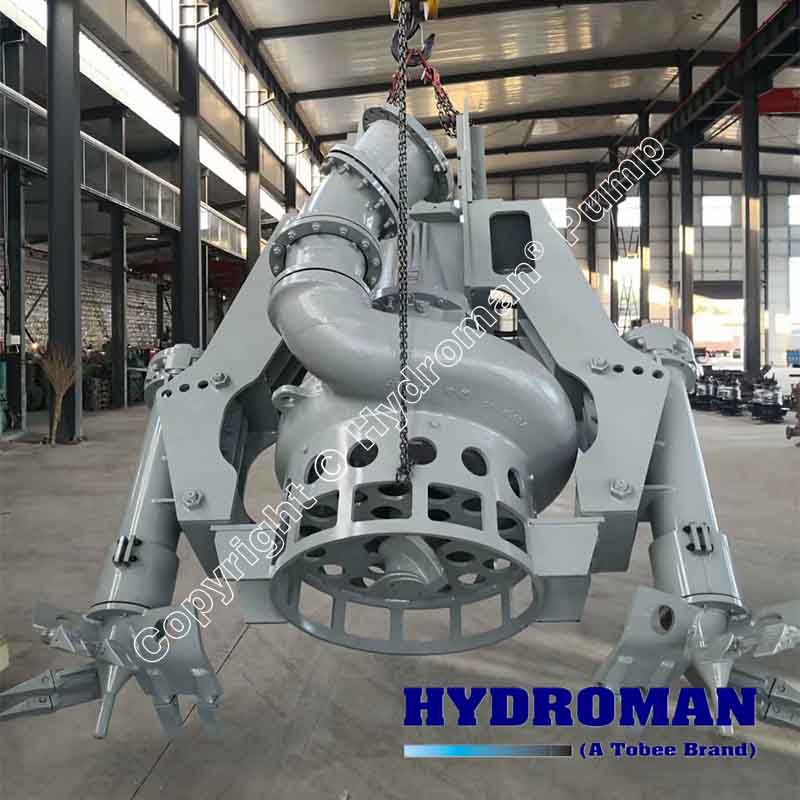

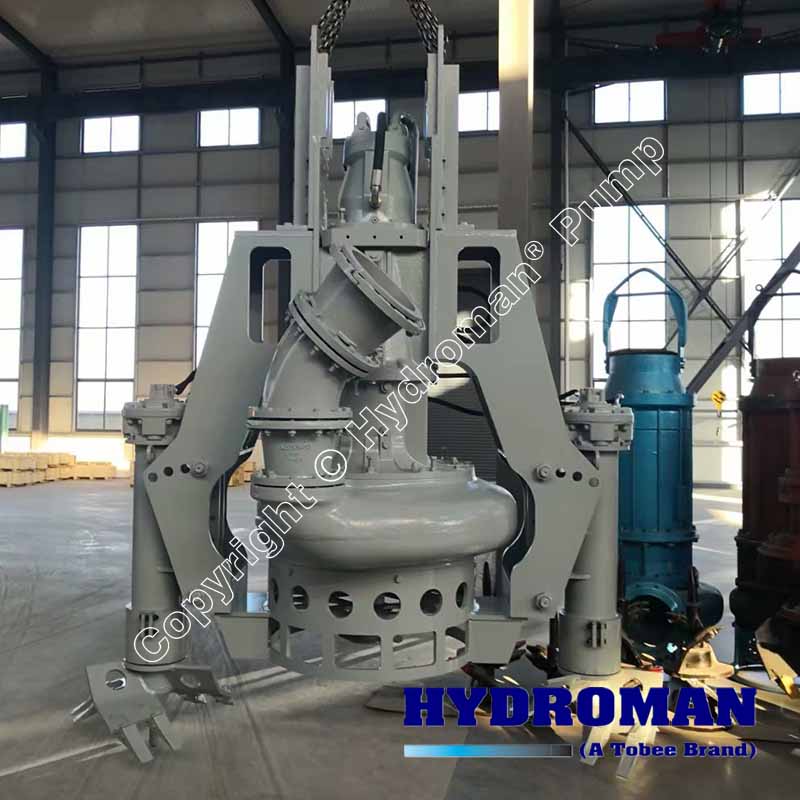

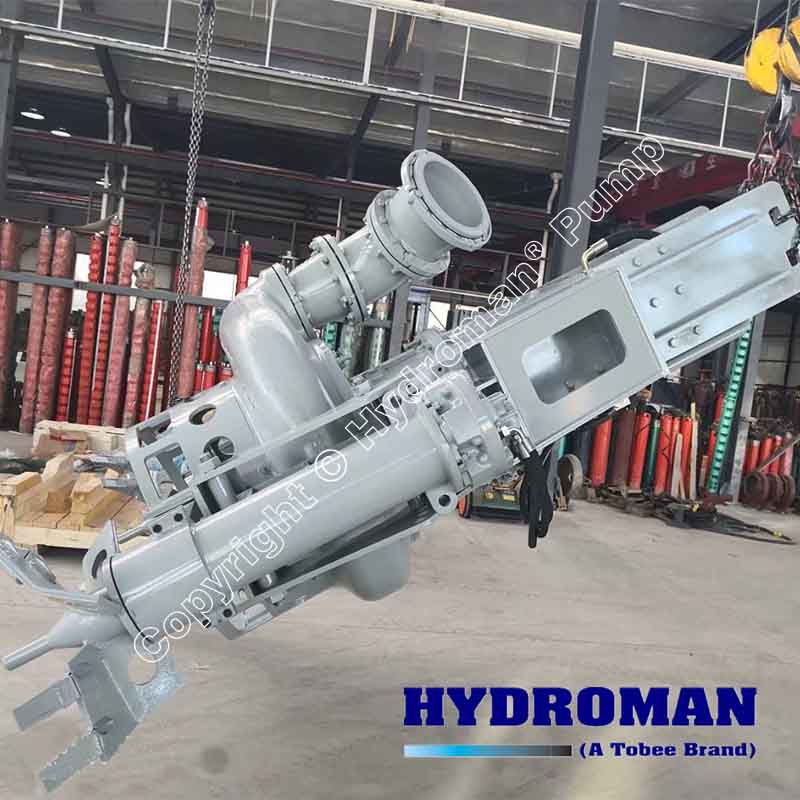

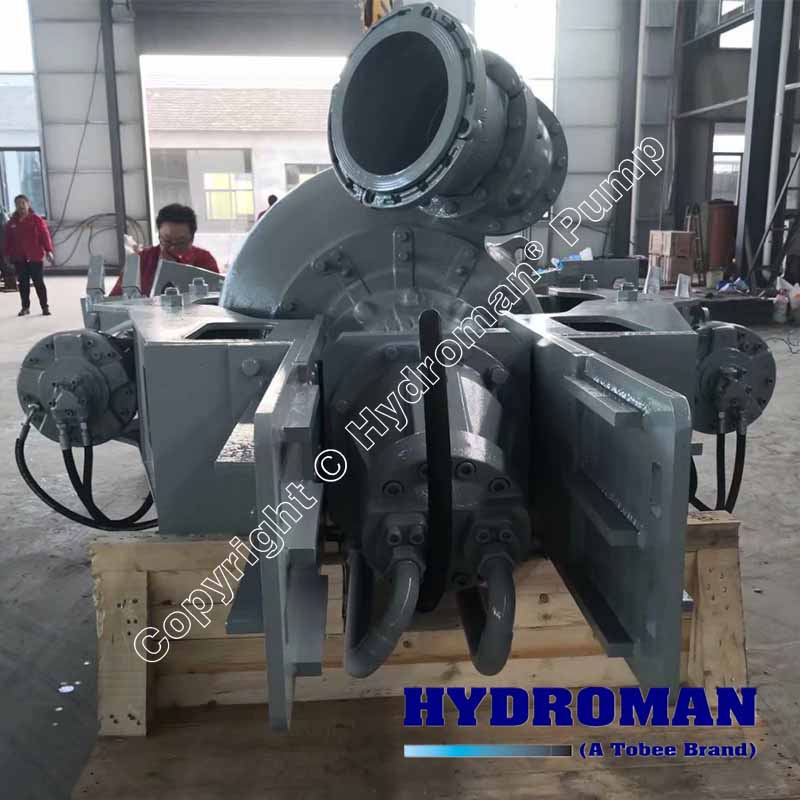

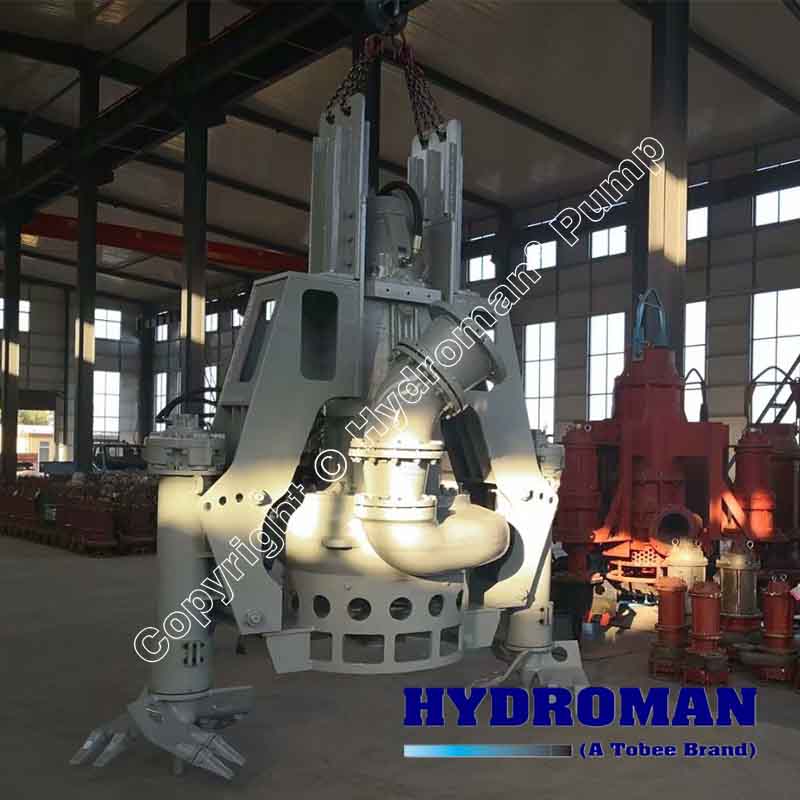

Hydroman™ THY Hydraulic Submersible Slurry Pump is designed for handling rocks, slurry, gravel, sand, stone, minerals, bentonite and others, with the shortest delivery times. Hydroman pumps deliver massive solids production at very low operational costs. The THY hydraulic slurry pump can install cutters or agitators on various excavators to work like submersible dredging pumps, It can be also used in various hydraulic stations.

Design Features:

▪ Submersible heavy duty agitator pump, hydraulic driven with variable RPM

▪ All Pumps have standard high efficiency agitator to lift settled solids.

▪ High abrasion resistance with high chrome wear parts.

▪ Low rotation speed to reduce wear effect.

▪ Agitators, Cutters, Excavators are available for options

▪ Able to handle up to 70% solids by weight.

▪ Easy installation on the boom of hydraulic excavators.

Hydroman™ THY Hydraulic Submersible Slurry Pumps Performance Parameters:

Model	Discharge size (mm)	Capacity (m³/h)	Head (m)	Spee d(rpm)	Power (kw)	Max. Particl e(mm)	Displacement (c.c.)	Pressure (bar)	Oil flow rate ( l/min)
THY24	100	60-80	18-28	1500-2000	10-19	25	20	210-300	30-40
THY35A	100	120-140	20-28	980-1180	18-25	35	55	210-250	54-65
THY35B	150	140-170	14-20	980-1180	18-25	35	55	210-250	54-65
THY50A	100	90-108	30-42	980-1180	25-37	35	75	210-250	74-89
THY50B	150	140-170	28-32	980-1180	25-37	35	75	210-250	74-89
THY50HC	150	210-250	15-21	980-1180	25-37	60	75	210-250	74-89
THY85A	150	200-240	22-30	980-1180	44-62	60	108	250-300	106-130
THY85B	200	350-420	16-23	980-1180	44-62	60	108	250-300	106-130
THY85HC	250	720-860	5-7	980-1180	44-62	90	108	250-300	106-130
THY175A	200	350-420	30-43	750-900	75-128	60	335	210-260	252-302
THY220A	250	720-780	22-26	600-650	110-160	120	500	230-300	300-325
THY220B	300	900-975	18-21	600-650	110-160	120	500	230-300	300-325
THY300A	250	720-900	22-34	600-750	110-214	120	500	230-350	300-375
THY300B	300	900-1200	18-28	600-750	110-214	120	500	230-350	300-375
THY400A	300	950-1000	34-42	750-850	239-295	120	710	270-300	535-605
THY400B	350	1100-1200	28-34	750-850	239-295	120	710	270-300	535-605

Hydroman™ THY Hydraulic Submersible Slurry Pumps Applications:

Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc

Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc

Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.

Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
