TSQ Heavy Duty Submerisble Sand pump with VFD Control Cabinet

Hydroman^® TSQ series heavy duty submersible sand slurry pump is heavy-duty, high-powered agitator slurry pumps, designed for passing the Max. particle diameter up to 55mm, and this submersible sand agitator pump performance is same with toyo DP series submersible slurry pump. Submersible Dredging River Sand Pump started by VFD will be more save power, and adding a variable frequency drive (VFD) to your electric submersible pumps can change it from a electrical submersible slurry pump that operates at one speed (single flow rate) to a submersible slurry pumps with agitator that can operate at variable speeds (range of flow rates) without the use of a gearbox or switching to a different electric motor.

Hydroman^® TSQ Submersible sand pump typically used for large-scale dredging projects such as offshore dredging, creating beaches, or widening shipping channels, and also ideal for dredging in rivers, lakes, and offshore areas, land reclamation, port construction, and maintenance dredging.

Hydroman^® TSQ Heavy duty submerisble sand pump with VFD control cabinet Applications:

Submersible sand pump used for drainaging of water mixed with scale in continuous casting facility of steel mill.

Submersible slurry pump desilting sludge in river.

Dredging of mud in construction of port by submersible slurry pump equipped with agitator.

Submersible dredging pump for pumping up sludge onto the barge.

Heavy duty submersible pump pumping up sand from sedimentation basin in a sewage plant.

Drainage of residual concrete in ready mixed concrete factory.

Dredging of river combined with TSQ electric submersible sand pump.

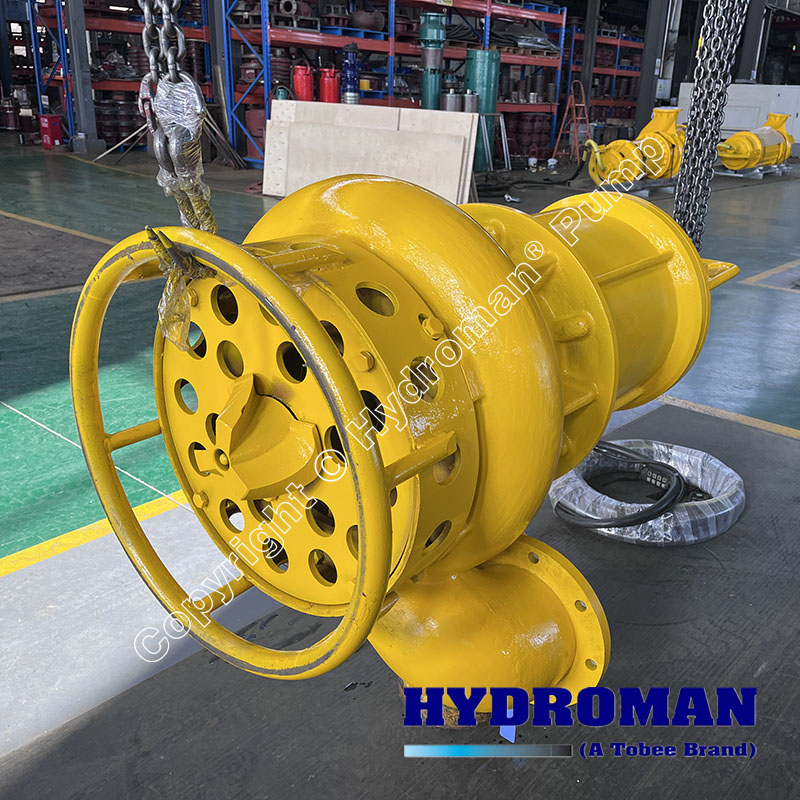

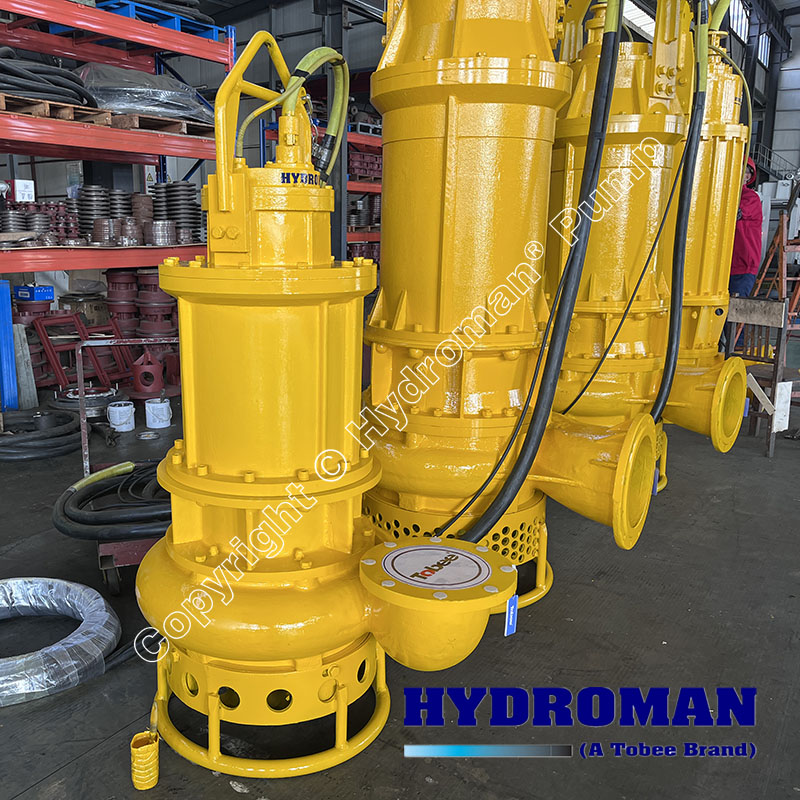

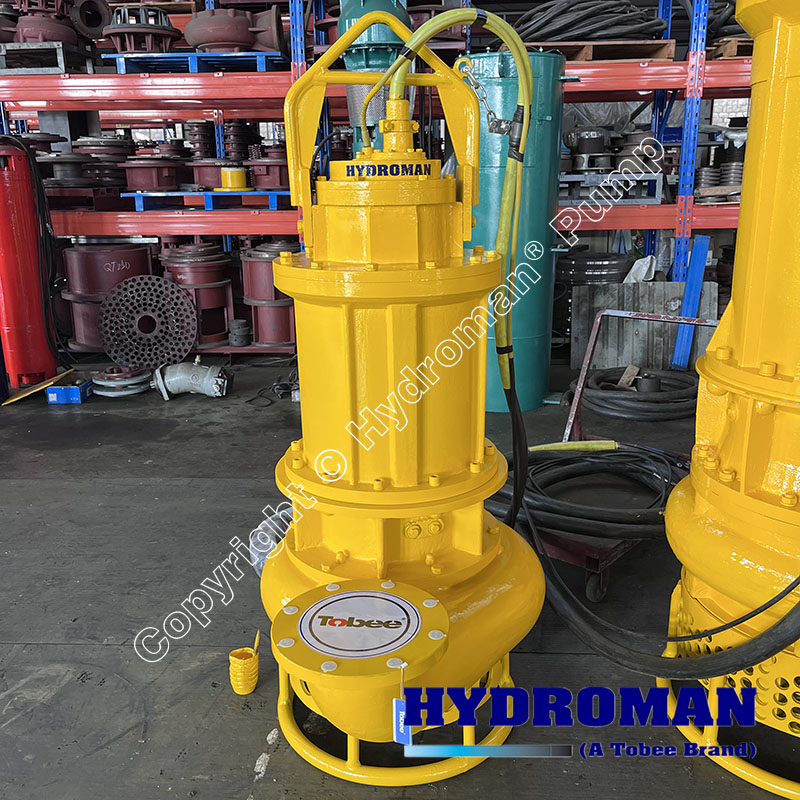

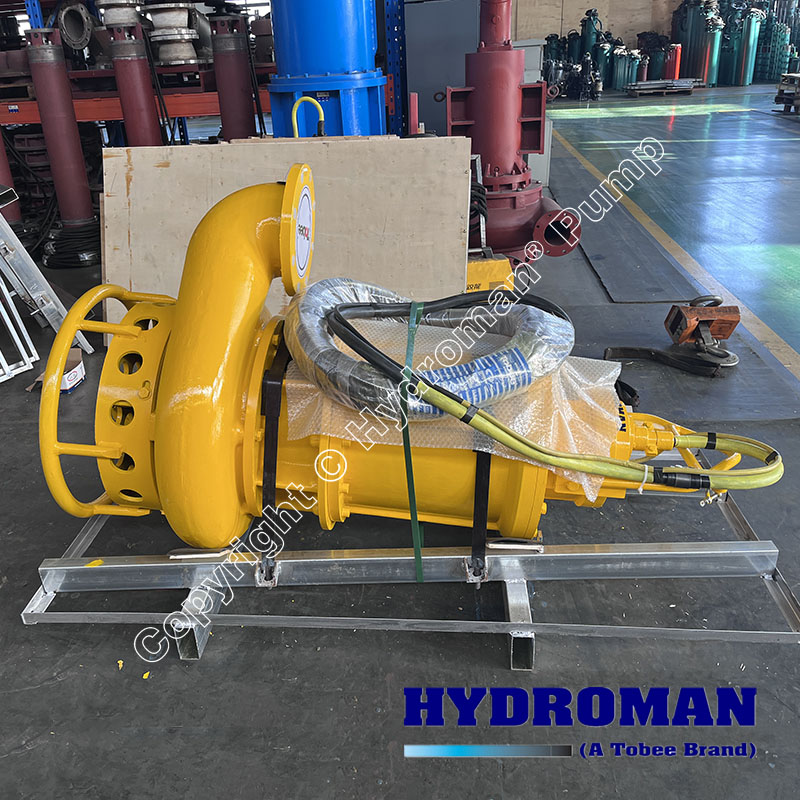

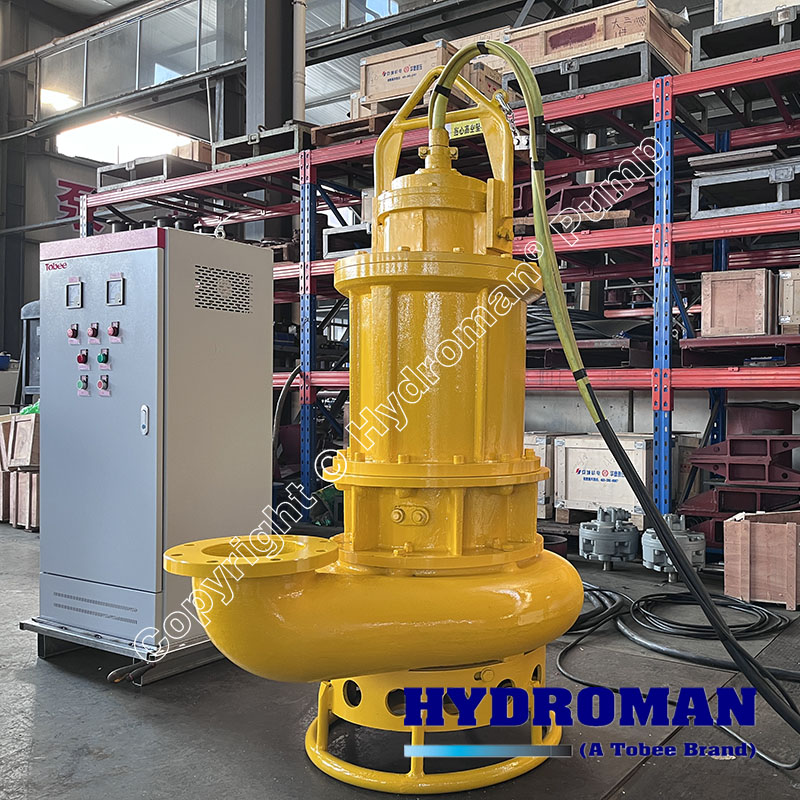

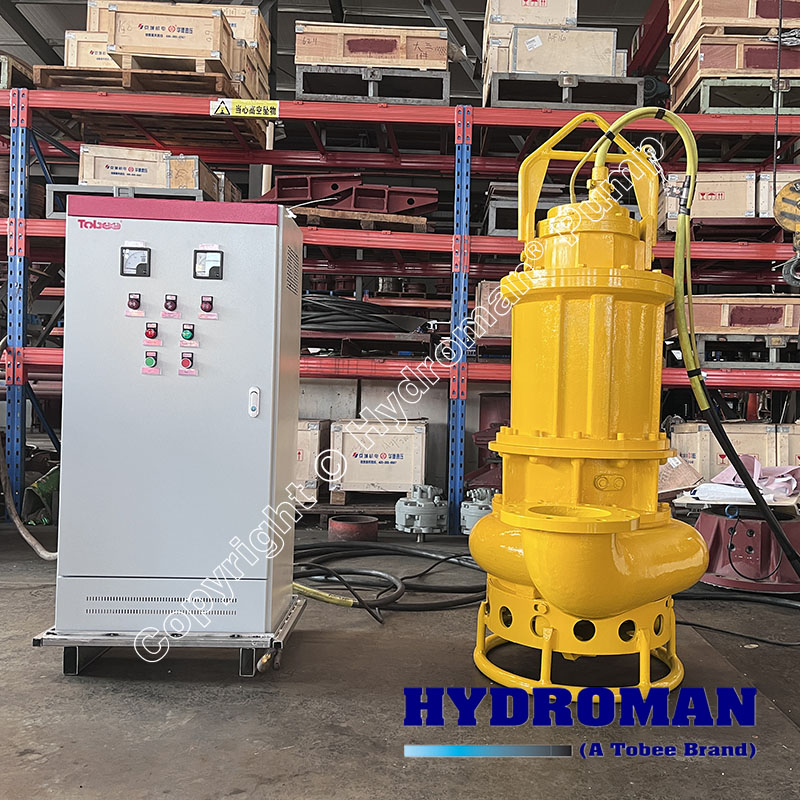

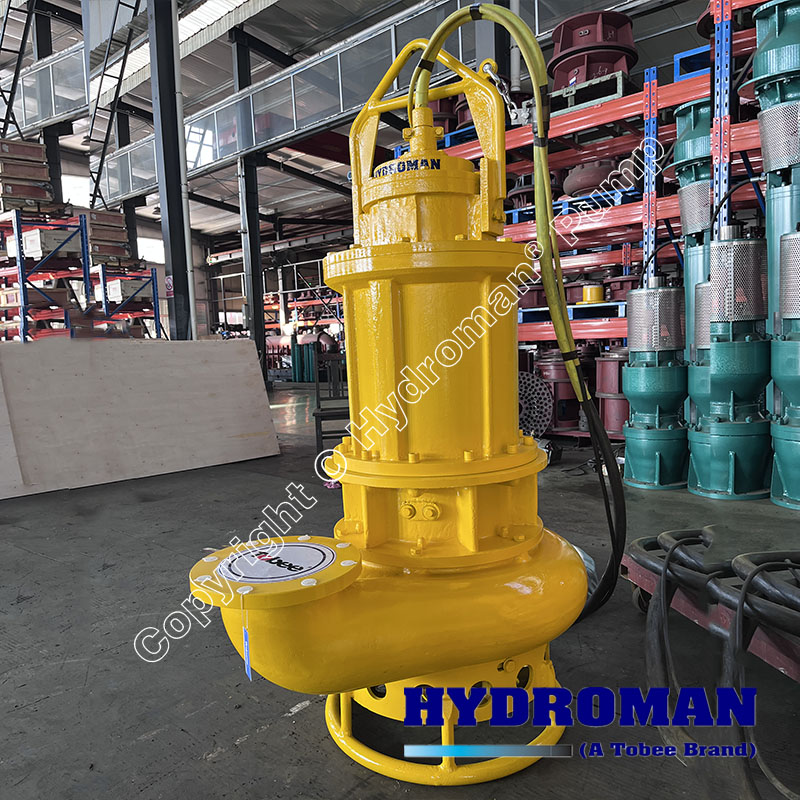

Hydroman^® TSQ series heavy duty submersible sand slurry pump with VFD Control Cabinet Photos
