55KW Submersible Sand Dredging Pump

SPECIFICATIONS:

Size: 6inch / 8inch

Capacity: 100-180 m3/h

Head: 40-60 m

Power: 55kw

Max. particle: 120mm

Sealing arrangement: Double mechanical seal

Agitator or Cutter heads: Available

Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.

Sales@tobeepump.com +86 180 3203 4573

Inquire Now Next Product

product details

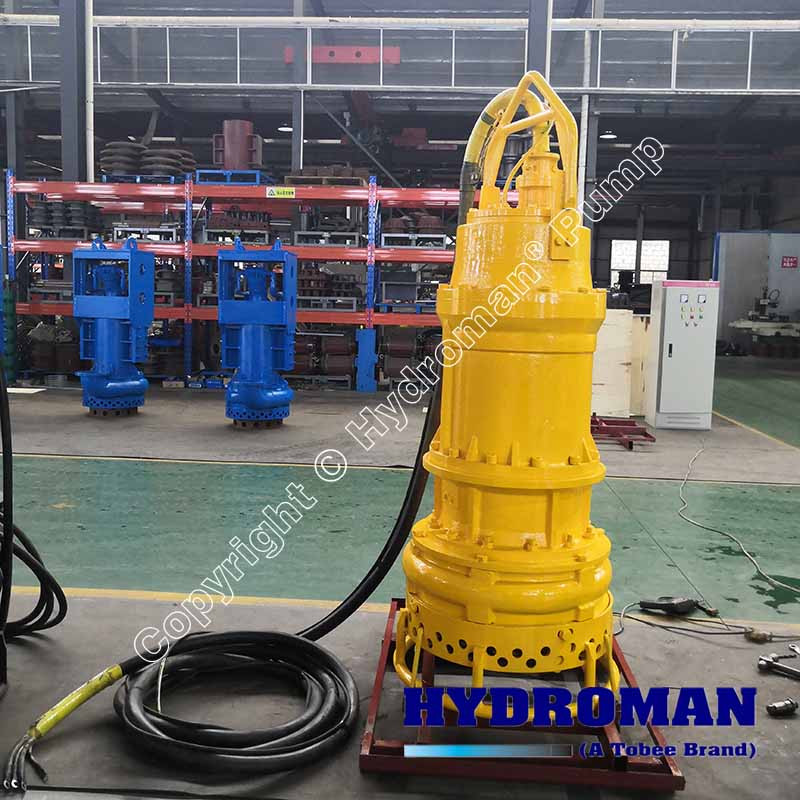

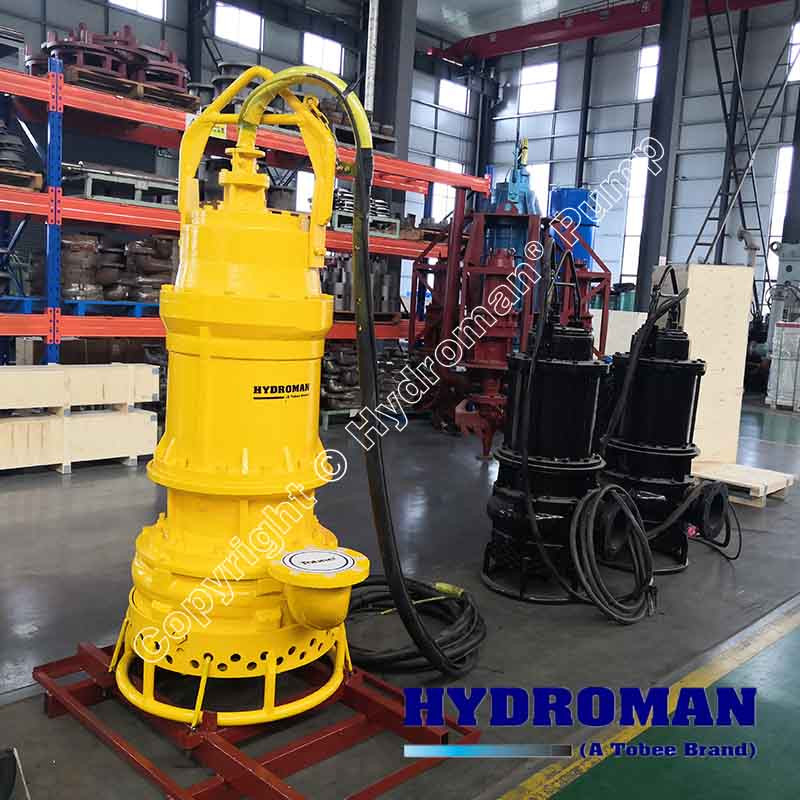

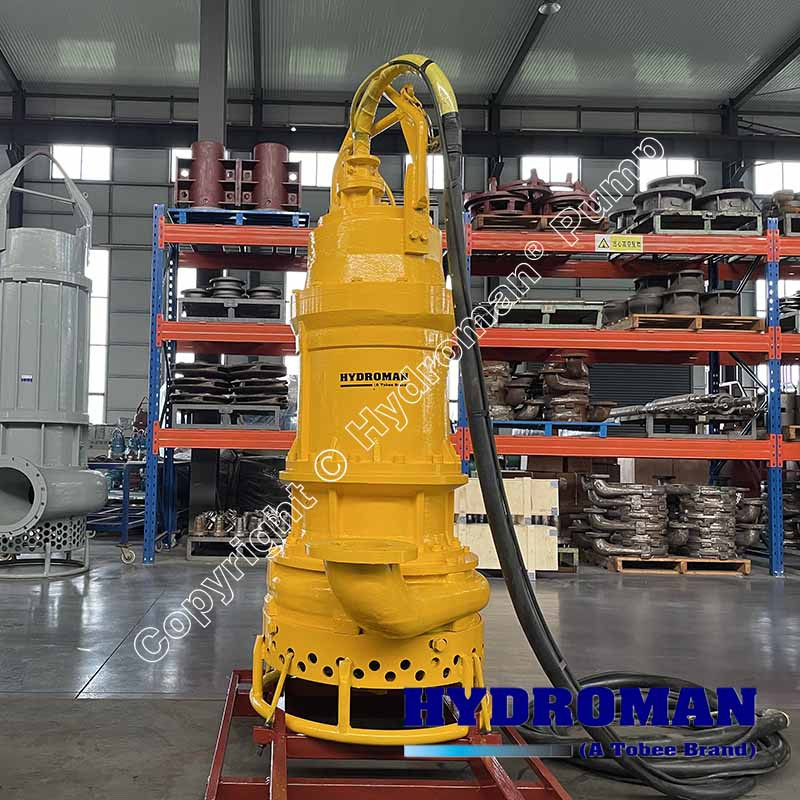

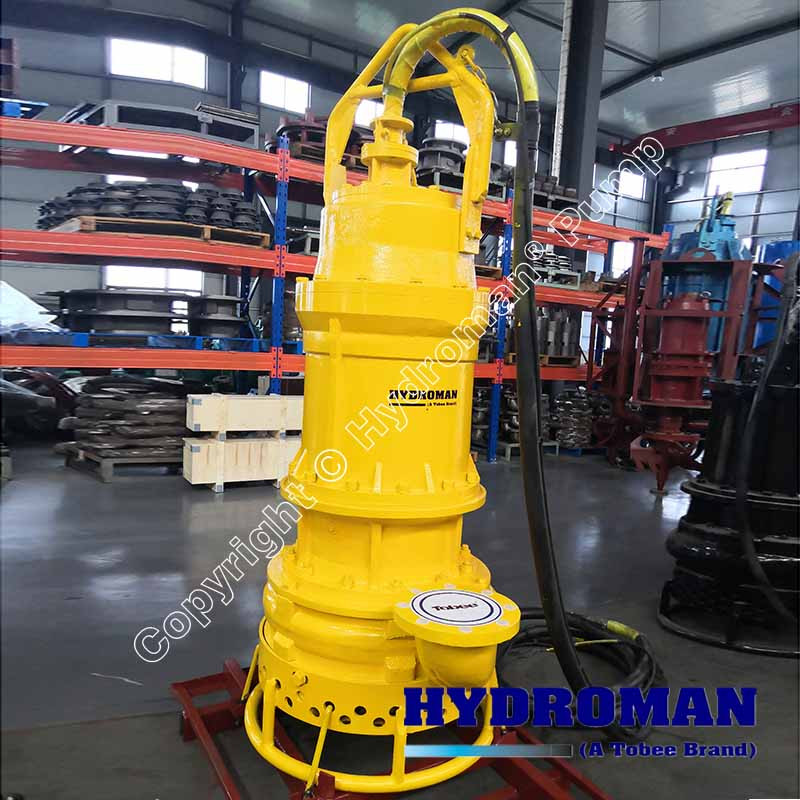

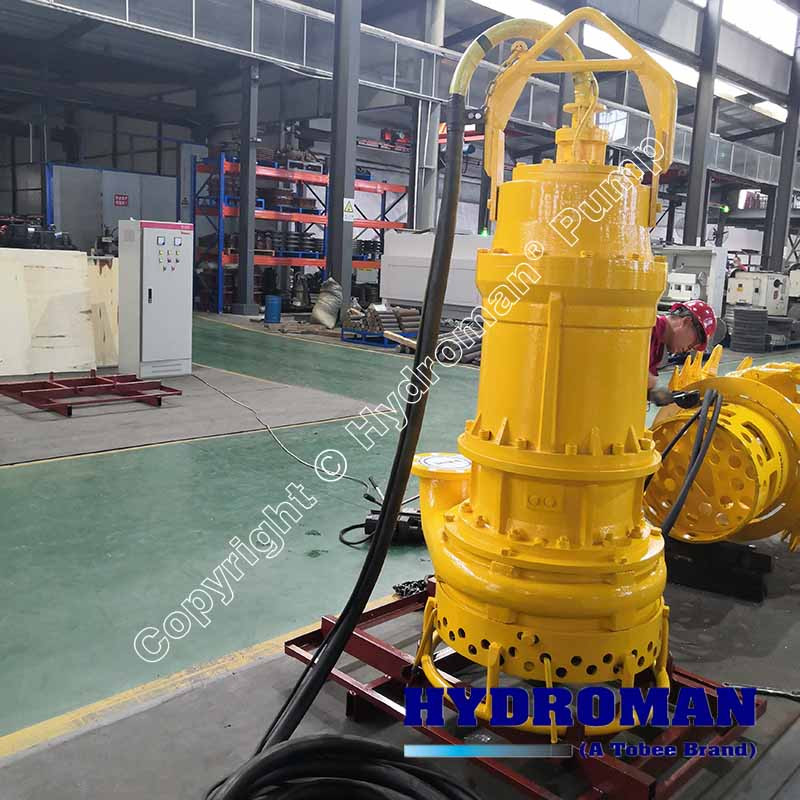

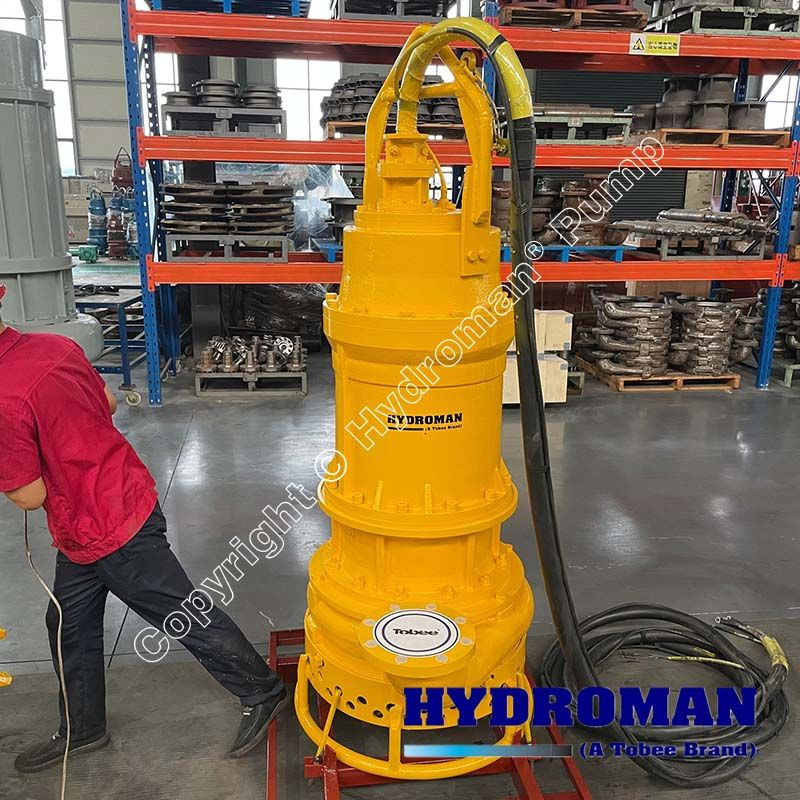

Hydroman™ Submersible Sand Dredging Pumps driven by 55kw motor and can be controlled by control panel, are particularly in presence of pumping sludge and water mixed with solids,heavy thick silt/sand or any sticky clay type material, hard and compact material.

Our TSQ series submersible sand dredging pumps proudly uphold the Hydroman™ brand promise for a specific set of application criteria. Electric submersible motors are all Class H insulated and have a minimum 1.25 service factor. Additionally, Hydroman TSQ Submersible Sand Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal. What is more, temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application. Furthermore, the high quality materials ensure long life of all components for submersible sand dredging pump.

Submersible Sand Dredging Pump Parameter:

Model

Capacity
(m3/h)

Head H
(m)

Power P
(kw)

Speed N
(r/min)

Eff. η
(%)

Max. Particles

(mm)

Size
(inch)

200TSQ

100-700
