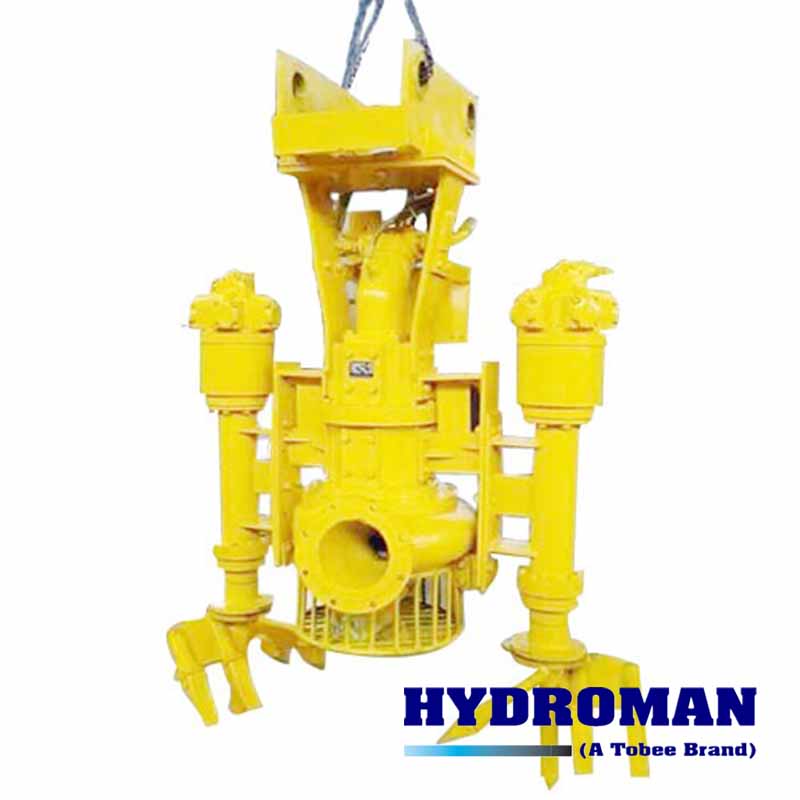

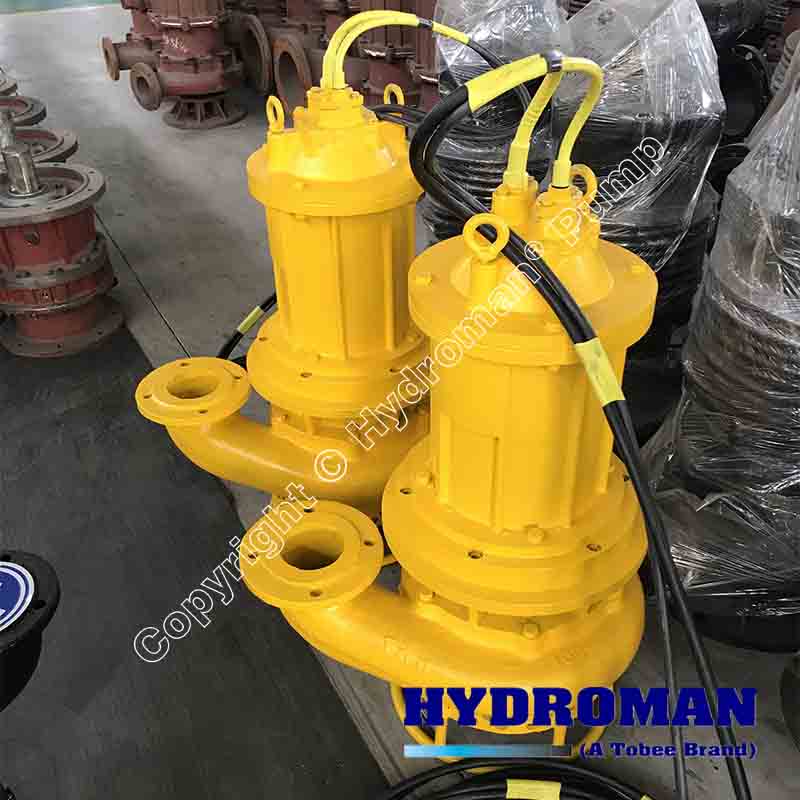

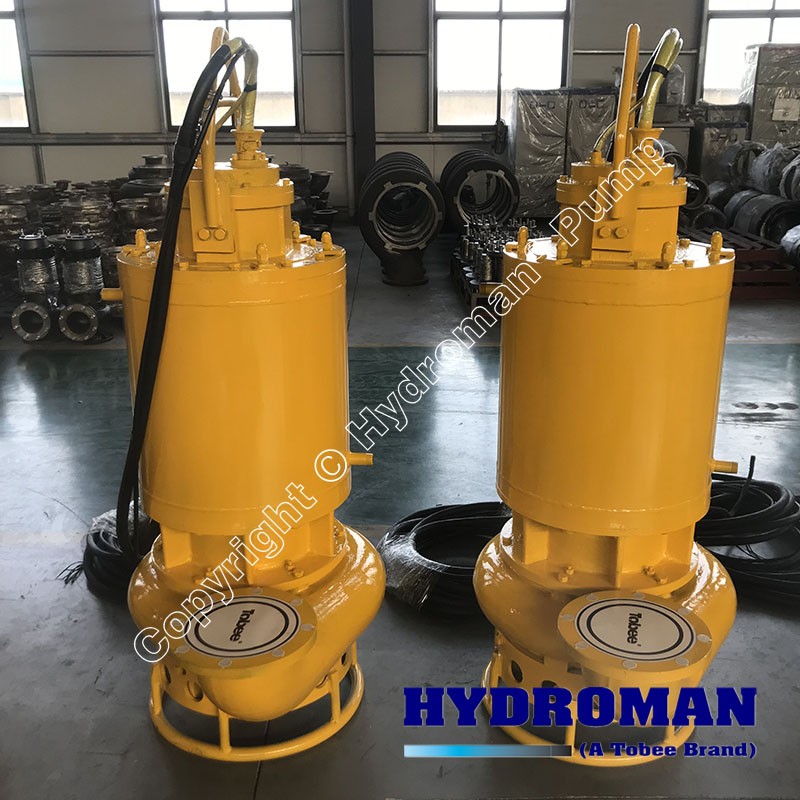

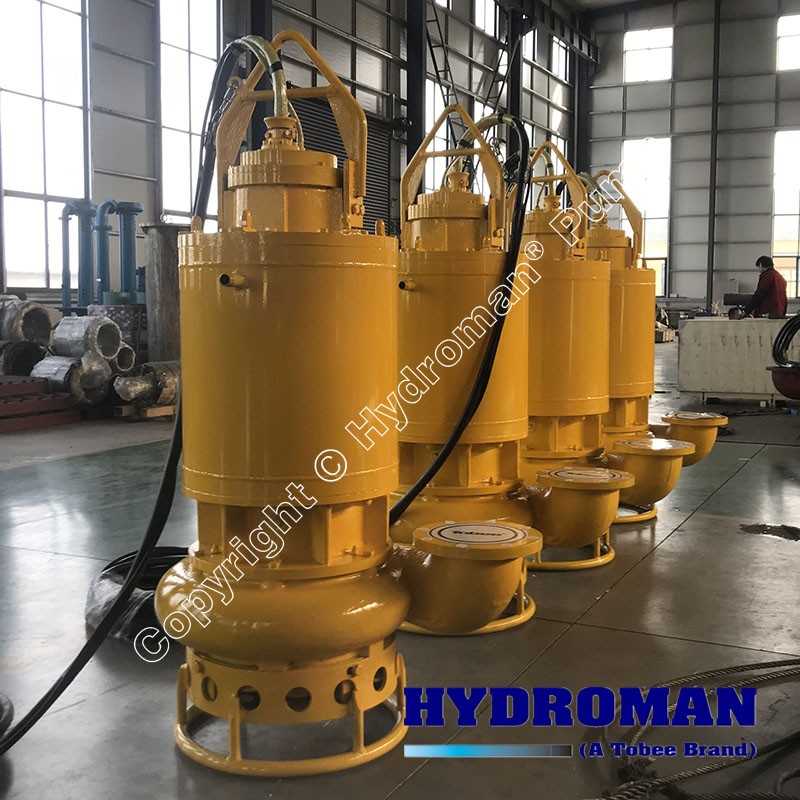

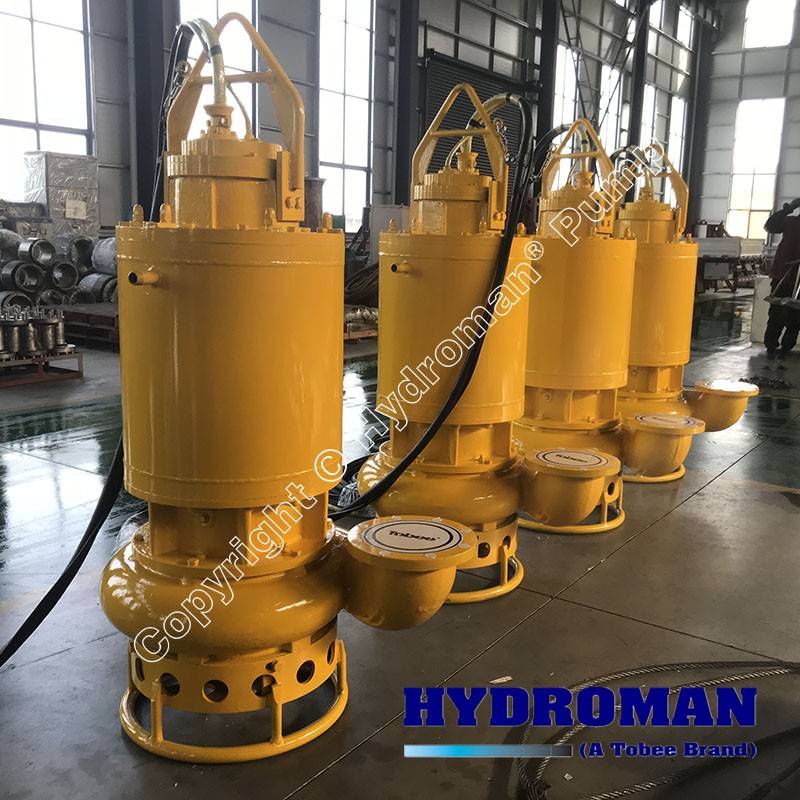

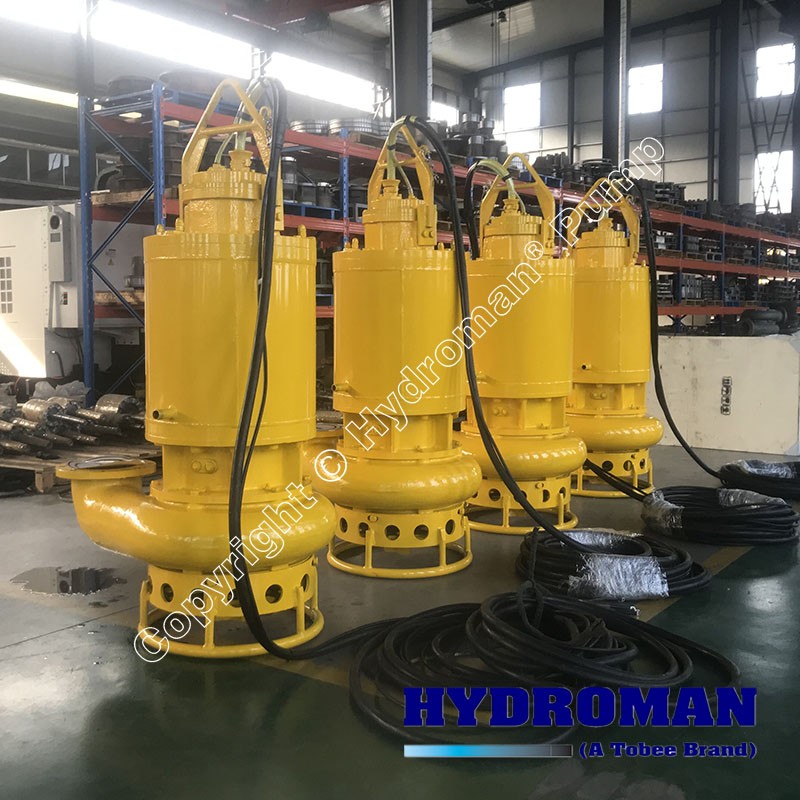

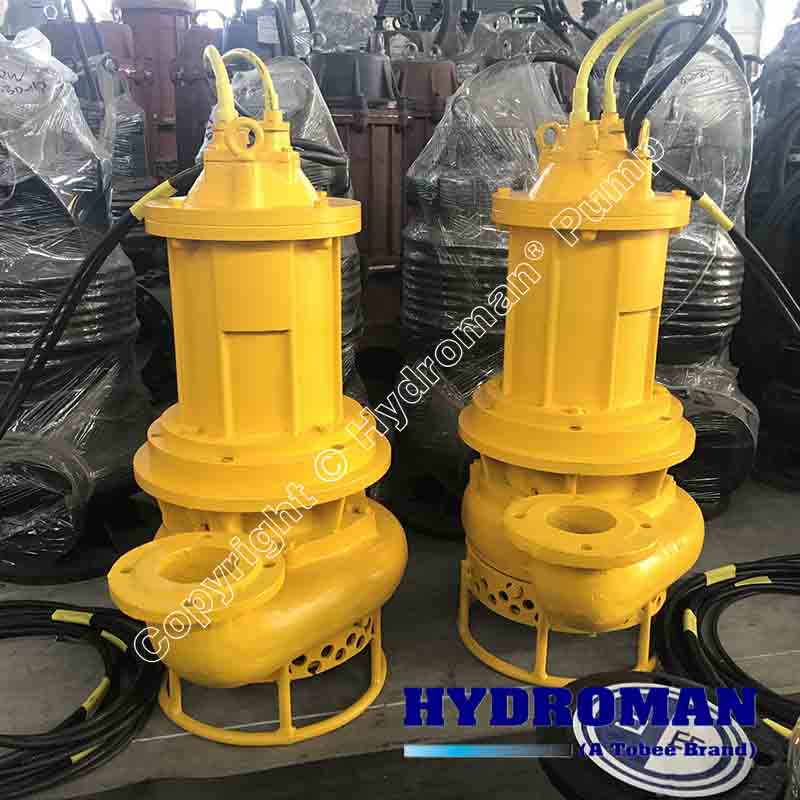

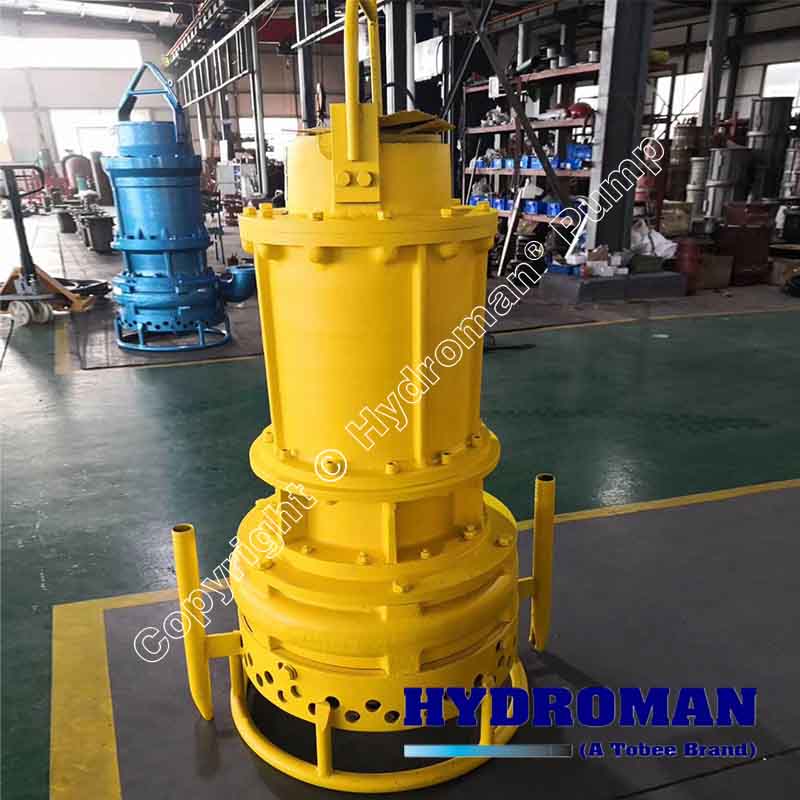

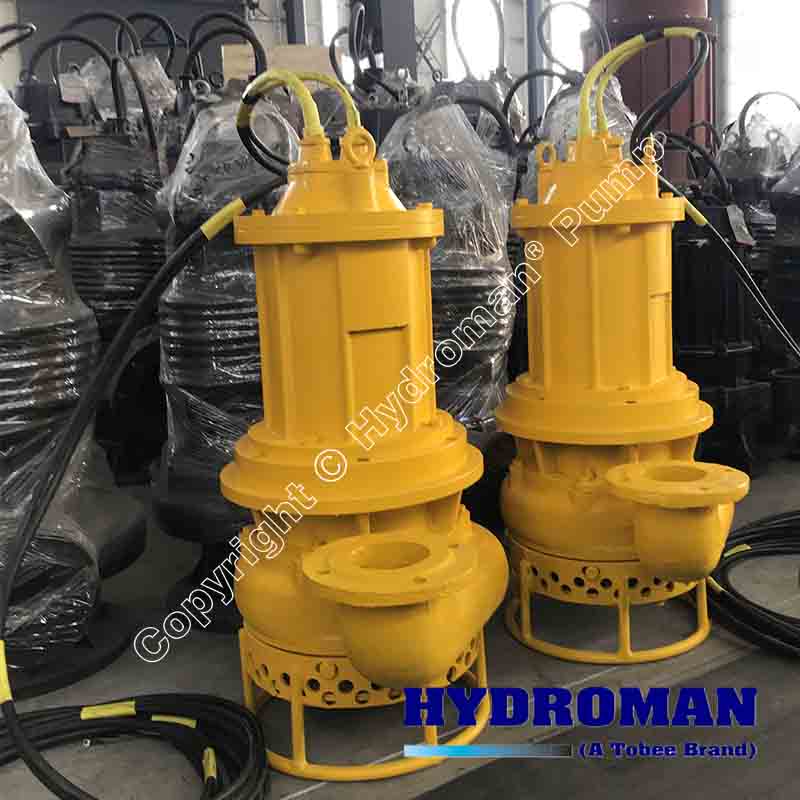

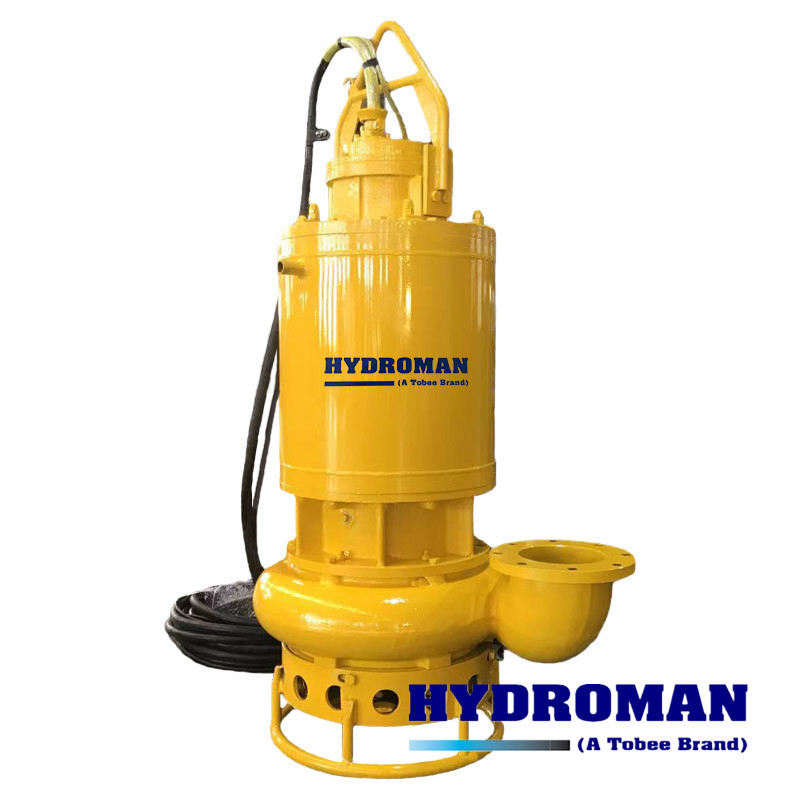

Submersible Agitator Sand Pump

SPECIFICATIONS:

Size: 50-400mm

Capacity: 7-2400m3/h

Head: 7-120m

Power: 0.75-315kw

Max. particle: 120mm

Agitator or Cutter heads: Available

Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman® Submersible Agitator Sand Pump | Heavy-Duty Slurry Handling Solution


Superior Performance for High-Density Slurries Pumps

The Hydroman® Submersible Agitator Sand Pump (also called submerged slurry pump or sand dredge pump) revolutionizes high-concentration solids handling with its integrated agitator design.

Unlike conventional sand pumps, our TSQ series delivers:

✔ 50% Higher Solids Concentration - Built-in agitator suspends sediments without auxiliary equipment

✔ Extended Service Life - Patented dual-pressure sealing system lasts 3X longer

✔ Wider Application Range - Handles sand, sludge, and abrasive slurries up to 70% density

✔ Intelligent Protection - Optional water intrusion detection and thermal sensors


Key Industries Served

→ Mining: Tailings transport, ore slurry pumping

→ Dredging: River sand extraction, harbor cleanup

→ Industrial: Coal ash removal, foundry sand recovery

→ Municipal: Sewage sludge handling, stormwater sediment


Design Features:

▪ Hydroman Submersible Electric Motors are all Class H insulated and have a minimum 1.25 service factor.

▪ Hydroman Submersible Sand Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.

▪ High quality abrasion resistance materials ensure long life of all components.

▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.

▪ Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.

▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.

▪ Lube Oil Inspection Ports: a wide angle port outside the submersible sand pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

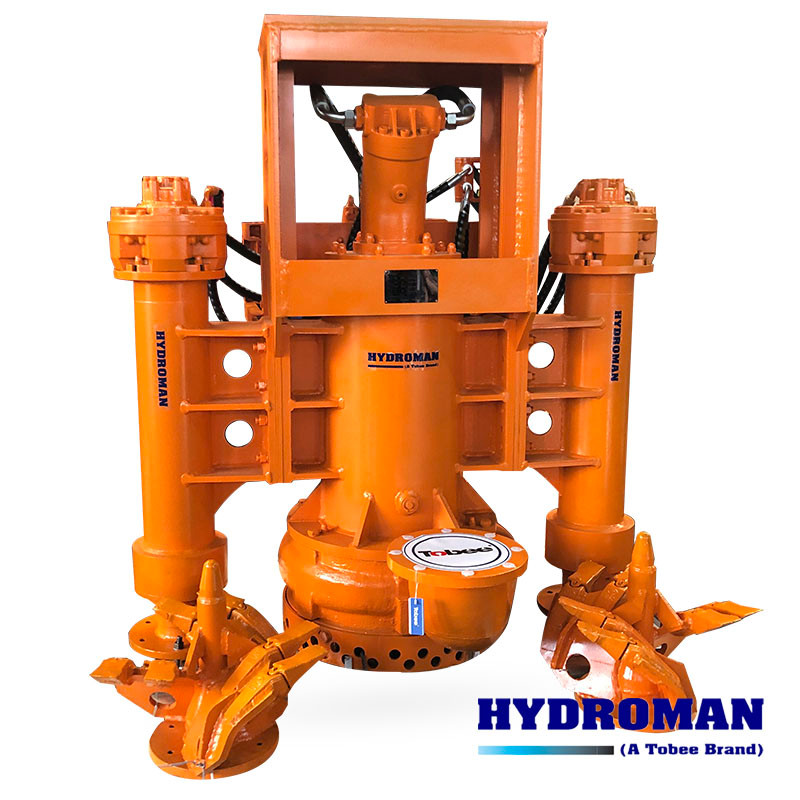

▪ The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the submersible sand pump, creating a continuous flow of concentrated sand.


Hydroman® Submersible Agitator Sand Pumps Applications:

DREDGINGMININGINDUSTRY  OFFSHORE
▪ Harbour and marina dredging.
▪ Channel and pond cleaning.
▪ Dam dredging.
▪ Land reclamation.
▪ Coastal protection.
▪ Geo-textiles filling.
▪ Sand and gravel.
▪ Tailing ponds dredging.
▪ Oils sands.
▪ Dewatering.
▪ Trench and pond cleaning.
▪ Gold and Silver mining.
▪ Bitumen pumping.

▪ Steel mills

.▪ Sewage plants.

▪ Bentonite Recycling.

▪ Civil emergencies.

▪ Industrial ponds dredging.

▪ Marble industry.

▪ Oil industry.

▪ Pipelines.
▪ High depth dredging.
▪ Sand extraction.
▪ Extra high depth
▪ dredging (>300m).


Common Questions

Q: How often does the agitator need maintenance?

A: Annual bearing replacement recommended for 24/7 operations


Q: Can it handle corrosive slurries?

A: Yes - 316L stainless steel version available


Q: What's the maximum solids concentration?

A: 70% by weight with proper agitator sizing


Why Professionals Choose Hydroman®  Pumps

✓ Proven in 50+ Mining Operations worldwide

✓ 2-Year Warranty on submersible agitator sand pump

✓ Custom Configurations for:

▪ High-temperature slurries (to 90°C)

▪ Explosive environments (ATEX available)

▪ Ultra-abrasive materials (tungsten carbide liners)


Get Your Slurry Solution

📞 +86 180 3203 4573 (24/7 Technical Support)

📧 sales@tobeepump.com

(Include your slurry analysis for optimal pump selection)
