SPECIFICATIONS:
Size: 50-400mm
Capacity: 7-2400m3/h
Head: 7-120m
Power: 0.75-315kw
Max. particle: 120mm
Agitator or Cutter heads: Available
Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.
product details

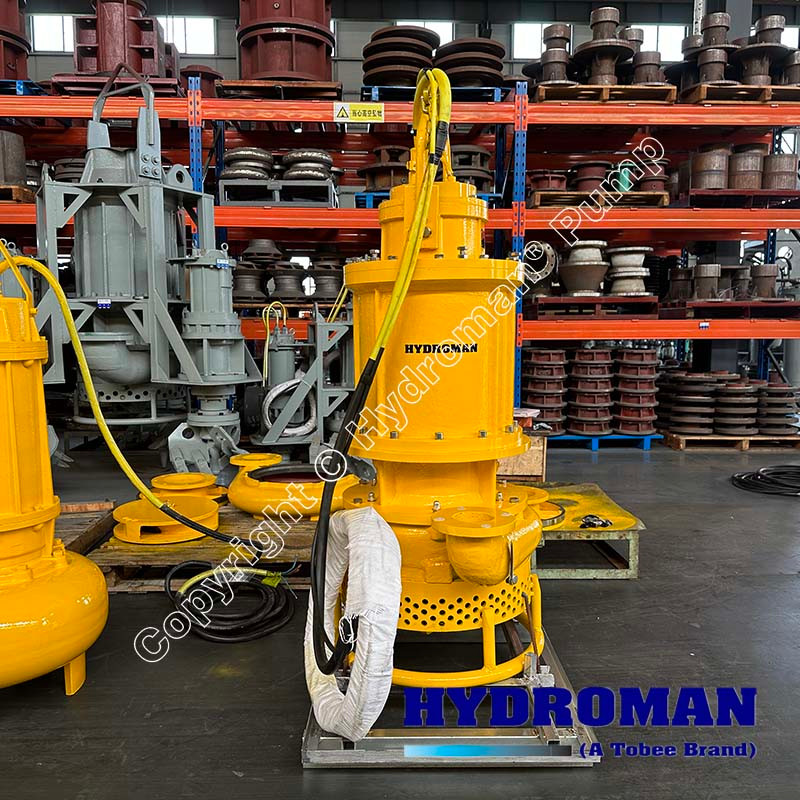

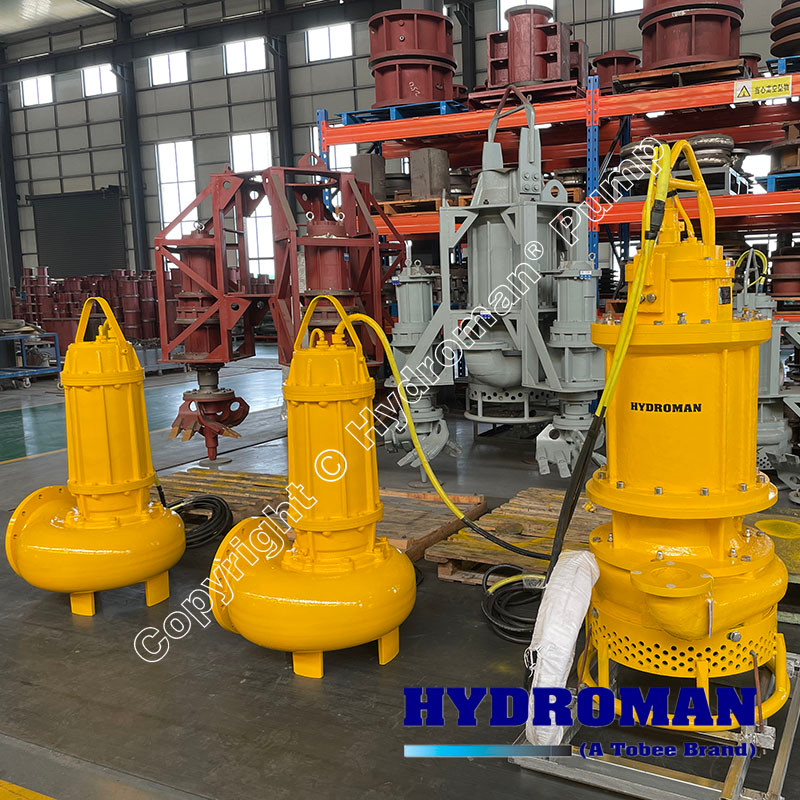

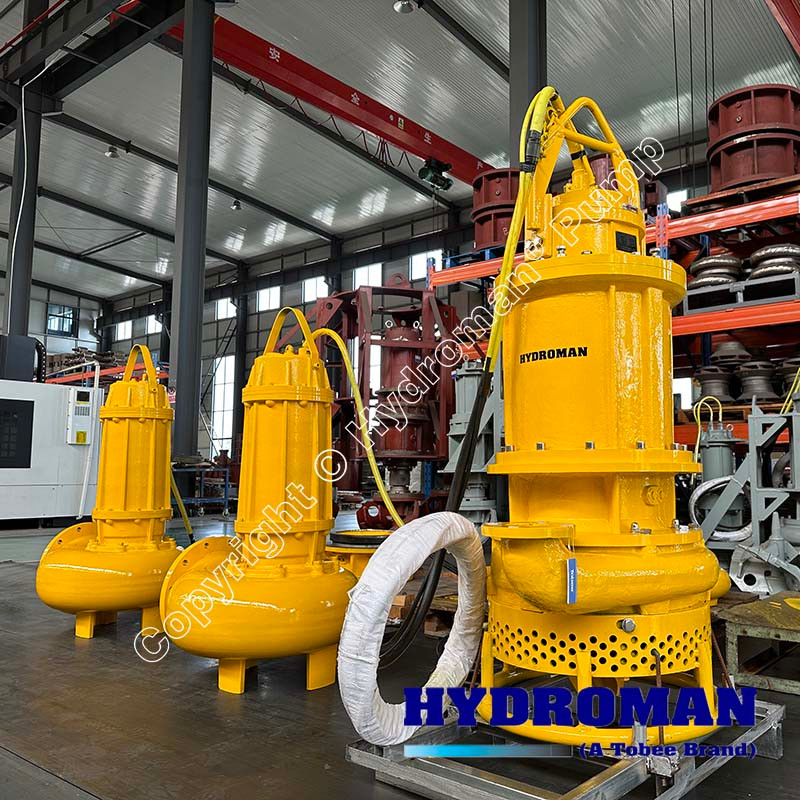

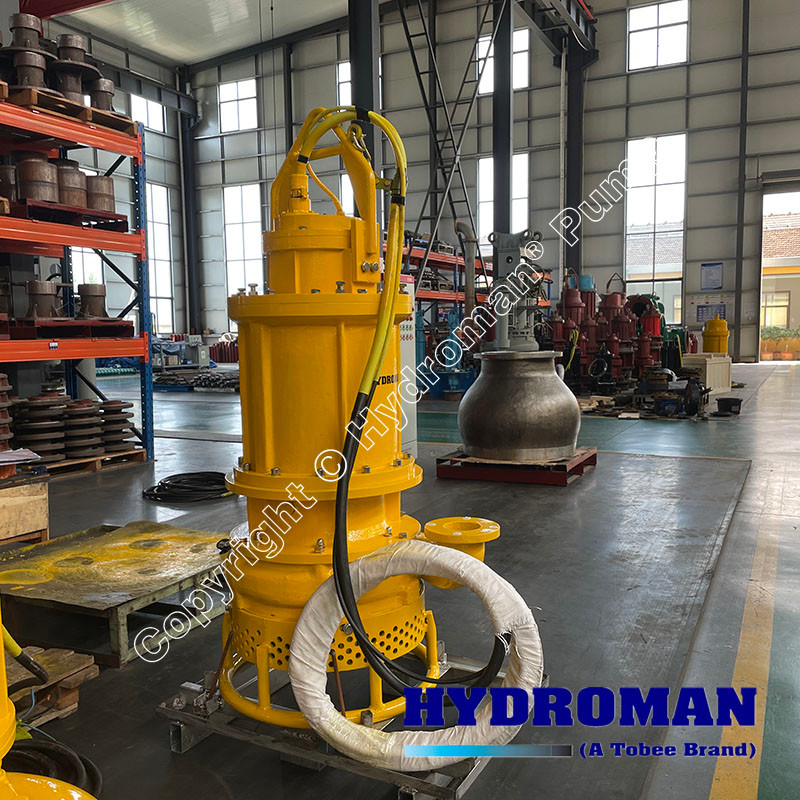

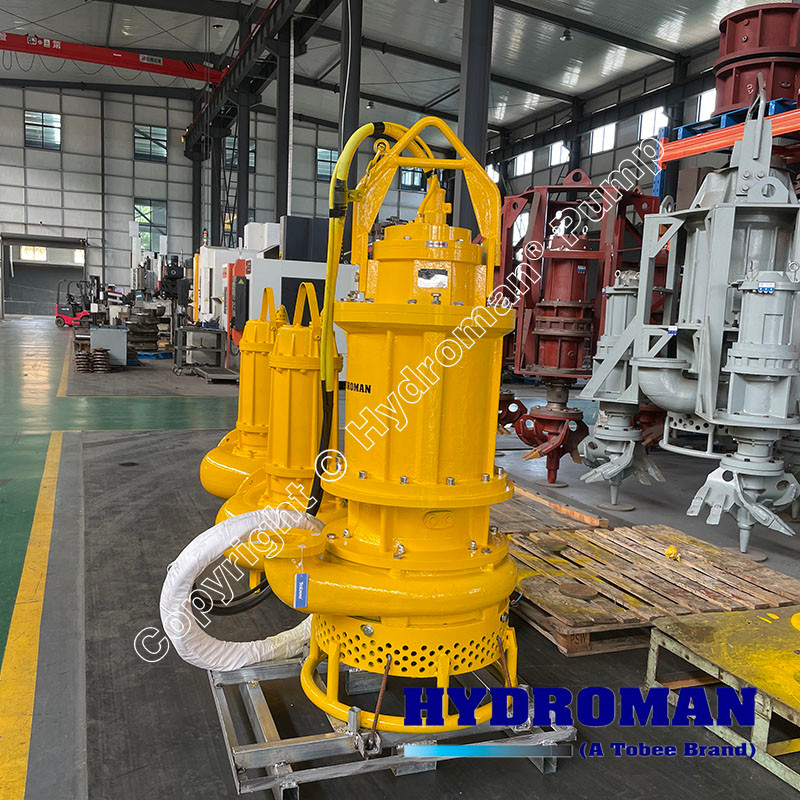

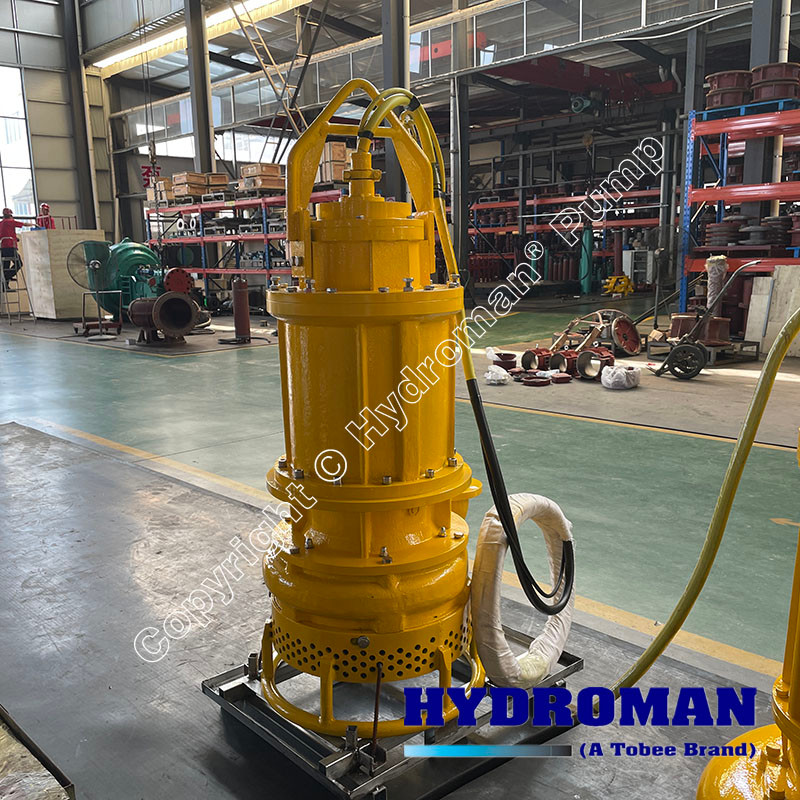

Hydroman® Submersible Explosion-proof Slurry Pumps are intended for explosion-proof applications, these submersible slurry pump with explosion-proof motor feature an explosion-proof structure that is suitable for drainage / pumping operations in coal mines, oil / gas refineries and similar worksites under an “explosive atmosphere” where dangerous combustible gases or vapors or flammable liquids exist.
Explosion-proof submersible pump is especially important for underground coal mining,as underground coal mining water management will invariably need to incorporate a dewatering process by submersible slurry mud pump, so mining management always need to take into account multiple threats such as explosive methane gases leaking from coal seams and water management throughout the mine.
Hydroman® Electric Submersible Agitator Slurry Pump equipped with agitators with the impeller, suction plate, and agitator made of high-chromium alloy and the pump casing and motor frame made of ductile cast iron, so Hydroman elecric submersible slurry pumps are excellent in terms of wear resistance, and thus suited for drainage of mud-water, sediment-containing water, and various kinds of liquid slurry.
Hydroman® also carries submersible slurry sand pump that withstand particularly severe applications such as drainage of high-temperature liquids and corrosive liquids as well as pumps built to 1000-V-rating specifications.
