TJQ Submersible Slurry Pumps

SPECIFICATIONS:
Size: 50-400mm
Capacity: 10-2000m3/h
Head: 8-150m
Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Sales@tobeepump.com +86 180 3203 4573

Inquire Now None

product details

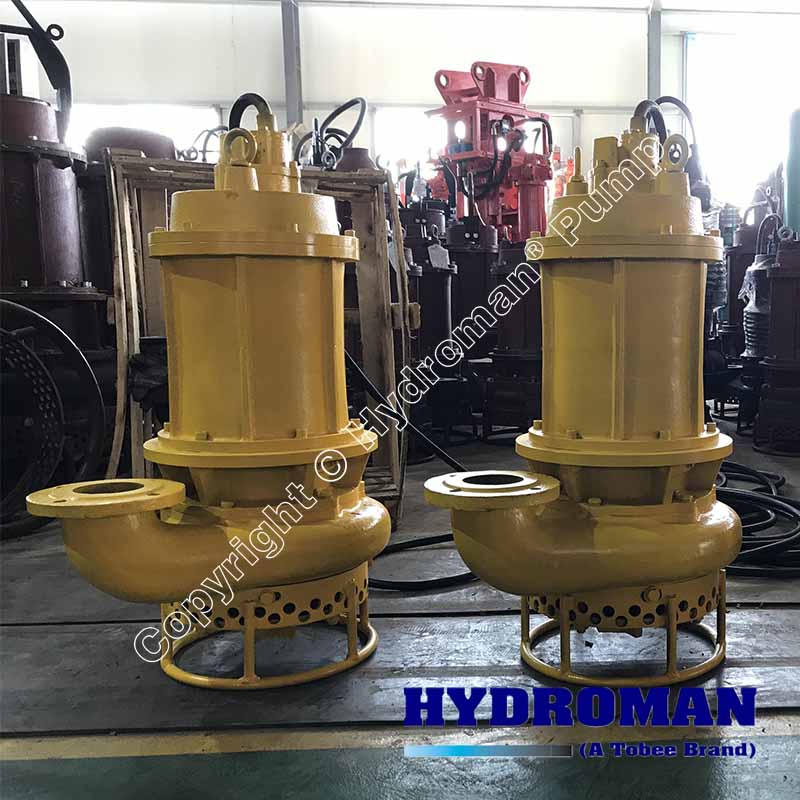

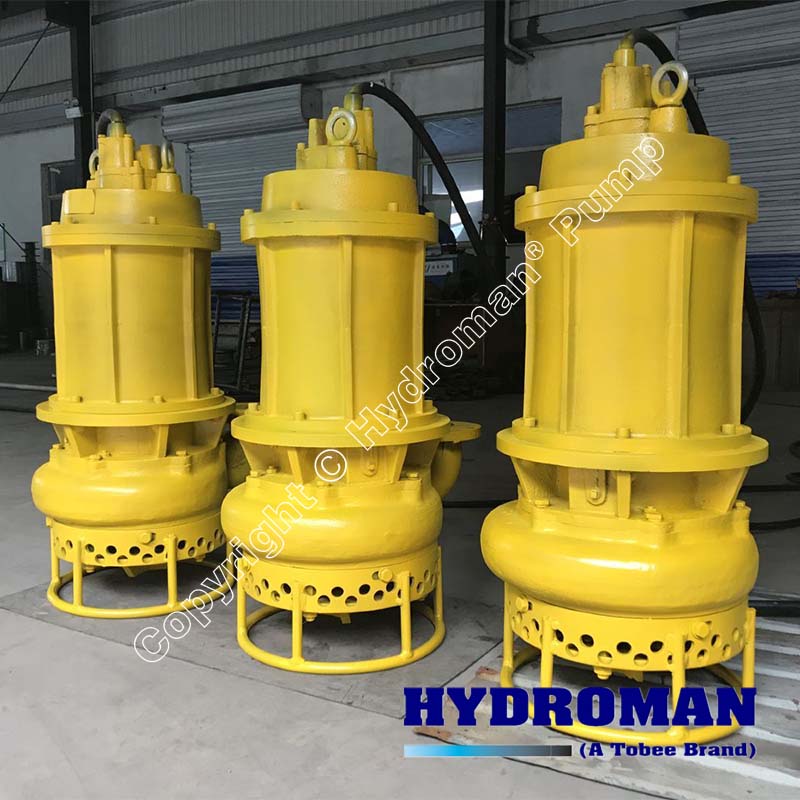

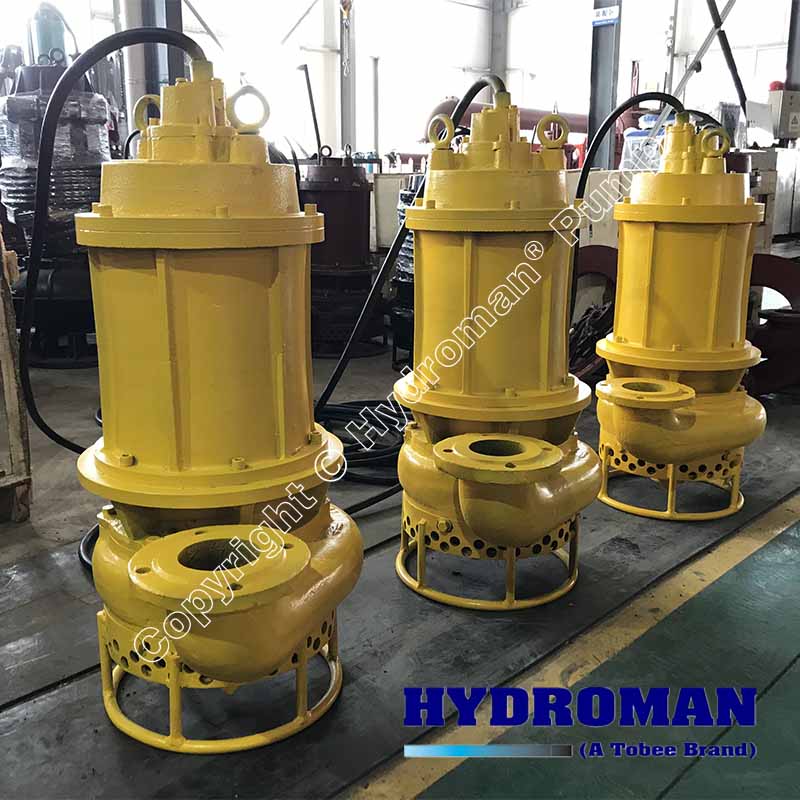

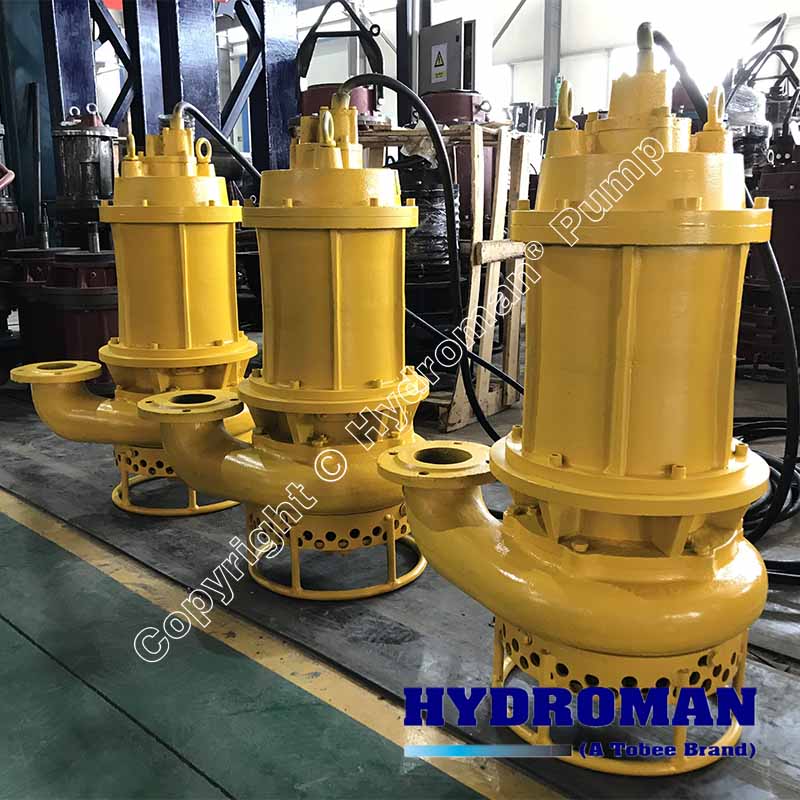

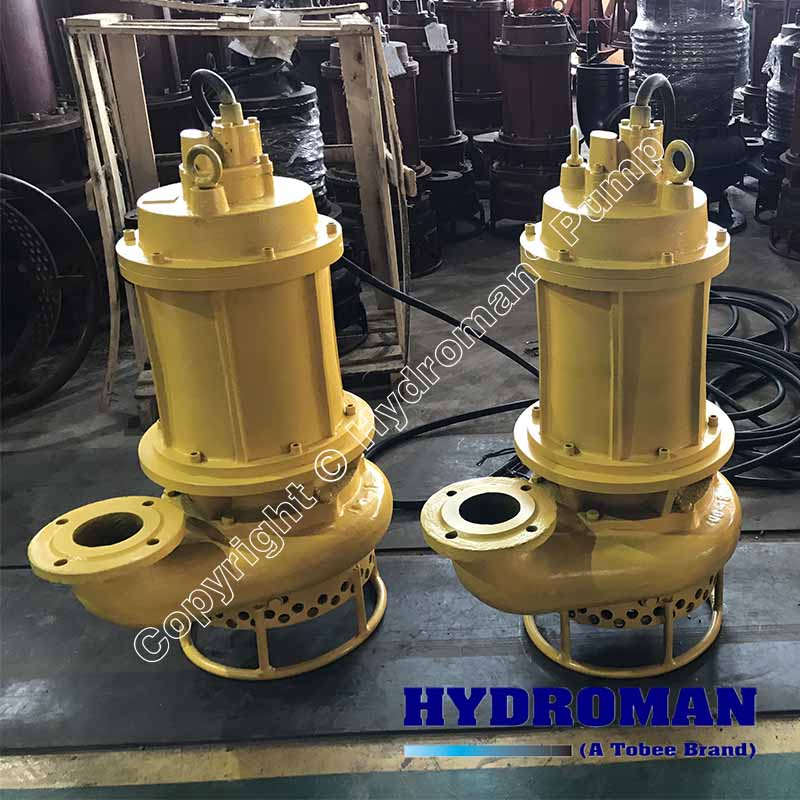

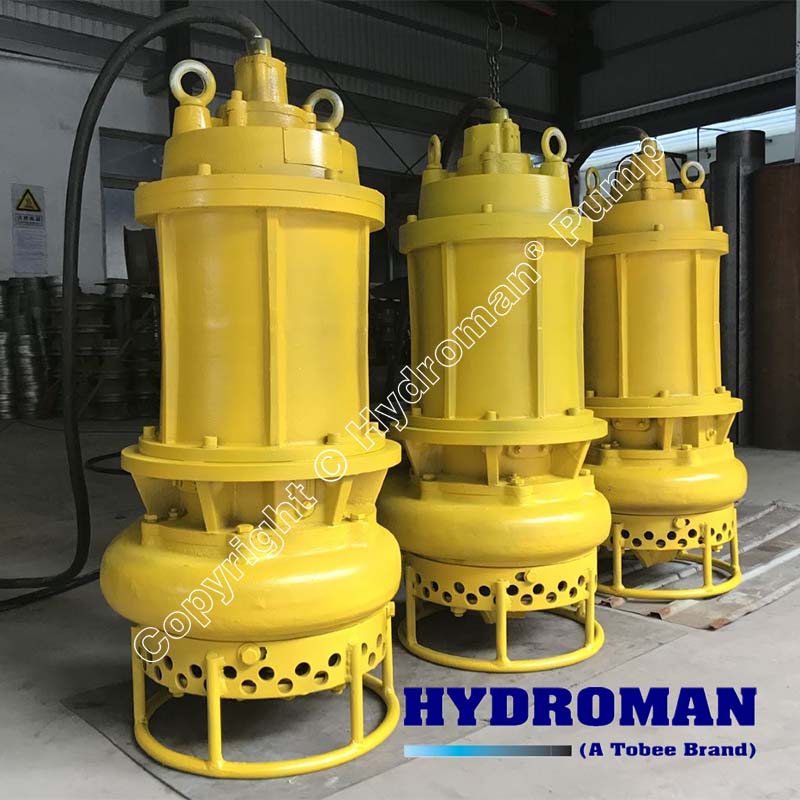

Hydroman™ TJQ Submersible Slurry Pumps are heavy duty agitator submersible slurry pumps, dredge Pumps, sand Pumps, and sludge Pumps working in the underwater industry, capable of handling slurry, sand, gravel, solids and all kinds of sludge in diverse applications related to the dredging, construction, oil and mining industry as well as marine, energy, and industrial sectors. TJQ Submersible Slurry Pumps deliver massive solids production at very low operational costs. Hydroman offers the deepest submersible, largest capacity, high head, long distance, heavy duty slurry pumps available on the market.

Design Features:

▪ HIGH-EFFICIENCY HIGH CHROME REVERSIBLE AGITATOR

Doubles the life of the agitator. The excavating action is created by the hardened high chrome agitator blades. They create a current that lifts settled sediments conveying them to the suction of the impeller which delivers a continuous flow of solids to the pump discharge.

▪ LOW OPERATING RPM

Low operating RPM promotes low wear rates and extended component life. When compared to other pumps of similar capacity Hydroman has a lower operating speed.

▪ OVERSIZED MOTORS

All Hydroman electric motors are oversized and are designed for slurries up to 1.6 SG. A Hydraulic drive version is also available providing higher output. Hydroman™ hydraulic augers THY can be attached directly to the pump creating a self-contained excavating system for hard compacted sand where a mechanical excavator would otherwise be required.

▪ ROBUST CONSTRUCTION

Long life and reliability are guaranteed by robust heavy-duty construction. Extra strong wear components provide extended life between spare part changes. All parts that are exposed or subjected to abrasive wear are manufactured in GS 500 or Hi Chrome alloys.

▪ THRUST BEARINGS

All Hydroman models have been designed with dual thrust bearings to reduce vibration and counter thrust loads in both directions.

▪ SOLIDS HANDLING CHARACTERISTICS

Hydroman™ slurry pump parts have been specially designed and shaped to provide outstanding performance, providing superb solids handling capabilities but with reduced wear and solid size up to 5 inch (120 mm).

▪ STRUCTURAL CHARACTERISTICS

Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.

Service Bolt: These bolts allow easy pump disassembly, a built-in service tool.

Replaceable wear parts: casings, impellers, wear plates all can be replaced independently

Lube oil inspection ports: A wide-angle port outside the pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

▪ LARGEST RANGE OF SUBMERSIBLE PUMPS

From 5 HP to 400 HP and discharge diameters from 3" to 16"

▪ HIGH HEAD PUMP IN THE MARKET

Handling slurries of up to 1.6 SG.

▪ OPTIONAL MECHANICAL SEAL, LIP SEAL OR HYBRID SEAL SYSTEMS

According to the application.

▪ CUTTERS HEADS AVAILABLE

Both Hydraulic and Electric, for hard compacted soil.

▪ OPTIONS FOR SEVERAL APPLICATIONS

High chrome casing, Cooling Jacket, Anti corrosion package, Anti abrasion package, Lower membrane protection, Cutter knife, Temperature and moisture sensors, custom frames to fix the pump in the boom of excavator machines.

Hydroman™ TJQ Submersible Slurry Pumps Performance Parameters:

No.	Model	Size (mm)	Capacity Q (m3/h)	Head H (m)	Power P (kw)	Eff. η (%)	Speed n (r/min)	Max. particles (mm)	Weight (kg)
1	50TJQ10-20-3	50	10	20	3	37	1460	8	110
2	50TJQ15-18-3	50	15	18	3	46	1460	8	110
3	50TJQ20-15-3	50	20	15	3	52	1460	8	110
4	50TJQ25-12-3	50	25	12	3	58	1460	8	110
5	65TJQ30-12-3	65	30	12	3	60	1460	8	110
6	65TJQ35-10-3	65	35	10	3	64	1460	8	110
7	65TJQ40-8-3	65	40	8	3	66	1460	8	110
8	50TJQ15-22-4	50	15	22	4	43	1460	10	113
9	50TJQ18-20-4	50	18	20	4	46	1460	10	113
10	50TJQ20-18-4	50	20	18	4	50	1460	10	113
11	50TJQ25-20-4	50	25	20	4	52	1460	10	113
12	65TJQ30-16-4	65	30	16	4	52	1460	10	113
13	65TJQ35-15-4	65	35	15	4	60	1460	10	113
14	65TJQ40-12-4	65	40	12	4	63	1460	10	113
15	65TJQ45-10-4	65	45	10	4	66	1460	10	113
16	80TJQ20-30-5.5	80	20	30	5.5	42	1460	13	205
17	80TJQ30-20-5.5	80	30	20	5.5	54	1460	13	205
18	80TJQ45-15-5.5	80	45	15	5.5	41	1460	13	205
19	80TJQ15-20-5.5	80	15	20	5.5	33	1460	13	205
20	80TJQ50-10-5.5	80	50	10	5.5	44	1460	13	205
21	80TJQ15-20-7.5	80	15	20	7.5	34	1460	13	210
22	80TJQ20-25-7.5	80	20	25	7.5	35	1460	13	210
23	80TJQ25-20-7.5	80	25	20	7.5	36	1460	13	210
24	80TJQ25-30-7.5	80	25	30	7.5	36	1460	13	210
25	80TJQ30-30-7.5	80	30	30	7.5	37	1460	13	210
26	80TJQ32-20-7.5	80	32	20	7.5	37	1460	13	210
27	80TJQ45-15-7.5	80	45	15	7.5	41	1460	13	210
28	100TJQ100-10-7.5	100	100	10	7.5	48	1460	21	220
29	80TJQ25-40-11	80	25	40	11	36	1460	13	300
30	80TJQ40-25-11	80	40	25	11	38	1460	13	240
31	80TJQ50-21-11	80	50	21	11	40	1460	13	240
32	80TJQ50-26-11	80	50	26	11	40	1460	13	240
33	80TJQ70-20-11	80	70	20	11	43	1460	13	240
34	100TJQ100-18-11	100	100	18	11	48	1460	21	240
35	80TJQ25-40-15	80	25	40	15	37	1460	13	330
36	80TJQ50-26-15	80	50	26	15	40	1460	13	260
37	80TJQ50-28-15	80	50	28	15	40	1460	13	260
38	100TJQ60-30-15	100	60	30	15	41	1460	13	265
39	80TJQ70-24-15	80	70	24	15	42	1460	13	260
40	100TJQ75-25-15	100	75	25	15	43	1460	13	260
41	100TJQ100-18-15	100	100	18	15	49	1460	21	270
42	100TJQ150-15-15	100	150	15	15	51	1460	21	270
43	150TJQ150-18-18.5	150	150	18	18.5	49	980	32	550
44	150TJQ200-12-18.5	150	200	12	18.5	53	980	45	550
45	150TJQ150-22-22	150	150	22	22	47	980	32	600
46	150TJQ200-15-22	150	200	15	22	50	980	45	600
47	150TJQ60-46-30	150	60	46	30	41	980	14	550
48	150TJQ70-38-30	150	70	38	30	42	980	21	710
49	150TJQ100-35-30	150	100	35	30	44	980	21	710
50	150TJQ108-30-30	150	108	30	30	44	980	21	710
51	150TJQ150-30-30	150	150	30	30	46	980	21	710
52	150TJQ150-35-30	150	150	35	30	46	980	21	710
53	150TJQ200-20-30	150	200	20	30	52	980	21	710
54	150TJQ240-20-30	150	240	20	30	55	980	21	710
55	200TJQ300-15-30	200	300	15	30	56	980	28	700
56	150TJQ100-50-37	150	100	50	37	44	980	21	850
57	200TJQ300-20-37	200	300	20	37	56	980	28	775
58	200TJQ400-15-37	200	400	15	37	58	980	28	775
59	150TJQ150-35-45	150	150	35	45	47	980	36	1000
60	150TJQ200-30-45	150	200	30	45	49	980	36	1110
61	200TJQ500-15-45	200	500	15	45	59	980	46	1100
62	150TJQ150-45-55	150	150	45	55	46	980	21	1140
63	150TJQ250-35-55	150	250	35	55	51	980	36	1140
64	250TJQ600-15-55	250	600	15	55	60	980	46	1220
65	150TJQ200-45-75	150	200	45	75	49	980	21	1540
66	150TJQ200-50-75	150	200	50	75	48	980	14	1550
67	200TJQ350-35-75	200	350	35	75	53	980	28	1550
68	200TJQ400-25-75	200	400	25	75	58	980	25	1550
69	200TJQ500-20-75	200	500	20	75	59	980	25	1550
70	150TJQ200-60-90	150	200	60	90	48	980	14	1550
71	200TJQ400-40-90	200	400	40	90	54	980	28	1550
72	200TJQ500-25-90	200	500	25	90	60	980	25	1550
73	200TJQ400-50-110	200	400	50	110	53	980	28	1970
74	250TJQ600-30-110	250	600	30	110	61	980	28	1970
75	300TJQ780-26-110	300	780	26	110	62	980	50	1970
76	300TJQ1000-18-110	300	1000	18	110	64	980	50	1970
77	200TJQ400-60-132	200	400	60	132	53	980	28	2000
78	200TJQ500-45-132	200	500	45	132	56	980	28	2000
79	200TJQ500-55-132	200	500	55	132	55	980	28	2000
80	300TJQ800-35-132	300	800	35	132	63	980	42	2000
81	300TJQ1000-22-132	300	1000	22	132	64	980	50	2000
82	200TJQ650-52-160	200	650	52	160	58	980	28	2650
83	300TJQ780-50-185	300	780	50	185	60	980	38	3330
84	250TJQ600-55-200	250	600	55	200	62	980	28	4080
85	300TJQ800-55-220	300	800	55	220	60	980	38	3400
86	350TJQ1250-35-220	350	1250	35	220	65	980	45	3400
87	350TJQ1750-30-250	350	1750	30	250	70	980	55	3750
88	350TJQ1500-35-250	350	1500	35	250	70	980	50	3750
89	350TJQ1750-40-315	350	1750	40	315	70	980	55	4200
90	400TJQ2000-35-315	400	2000	35	315	72	980	60	3800

Hydroman™ TJQ Submersible Slurry Pumps Applications:

Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
